MIDI controller Layout of 4 encoders and 4 potentiometers

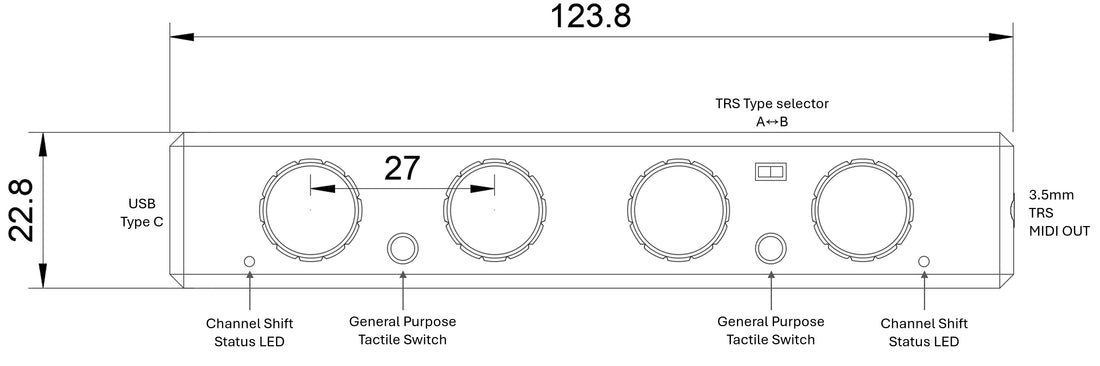

Layout
Length, width and height can be slightly changed without notice.
Knobs
All the knobs have 15mm diameters with aluminum.
Potentiometers product have marking to show current absolute position whereas encoder product don't have markings.
Tactile buttons
General purpose tactile button can be used as NOTE or channel shift upto / downto 3. Every time channel changed, the channel shift status LED blinks.
For mor information about channel shift, refere to this documentation.
TRS Selector
TRS selector is added lately to support both type A and B. Because of the limit space, TRS 3.5mm port is used. You might need to use TRS to DIN adapter but there are two types (A and B). Old version only supports type A but now, you can switch them. Very convenient!
