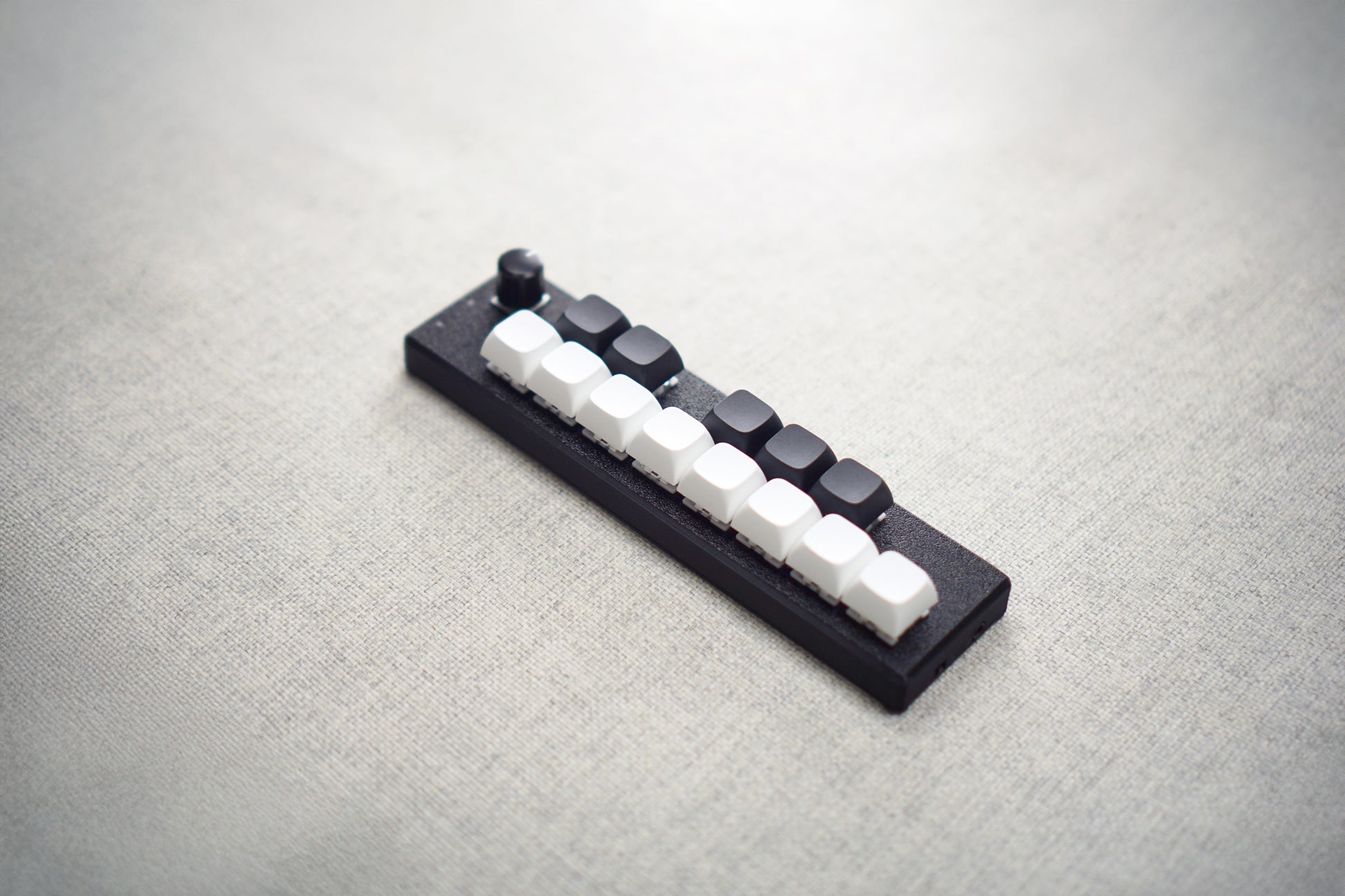

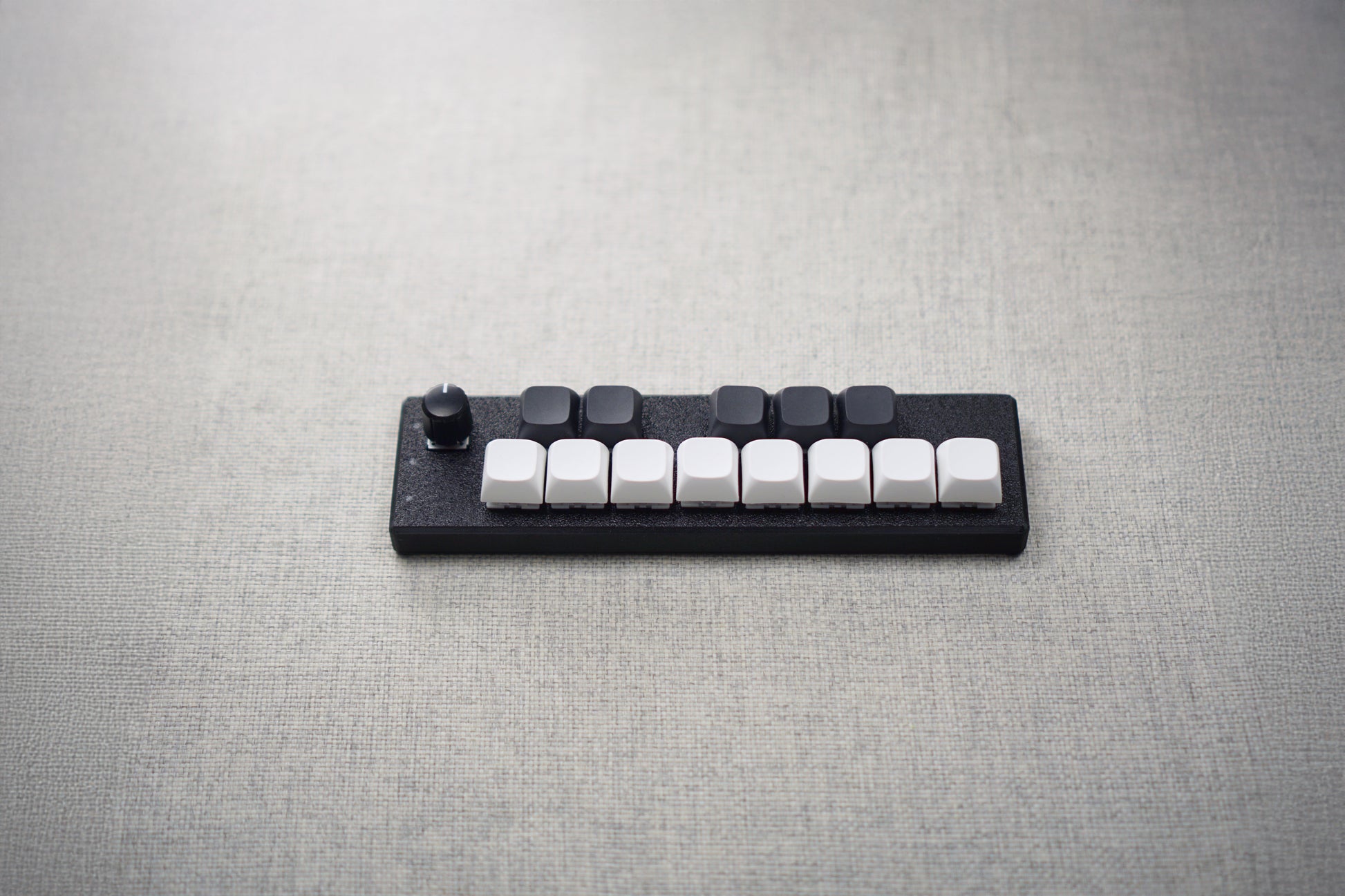

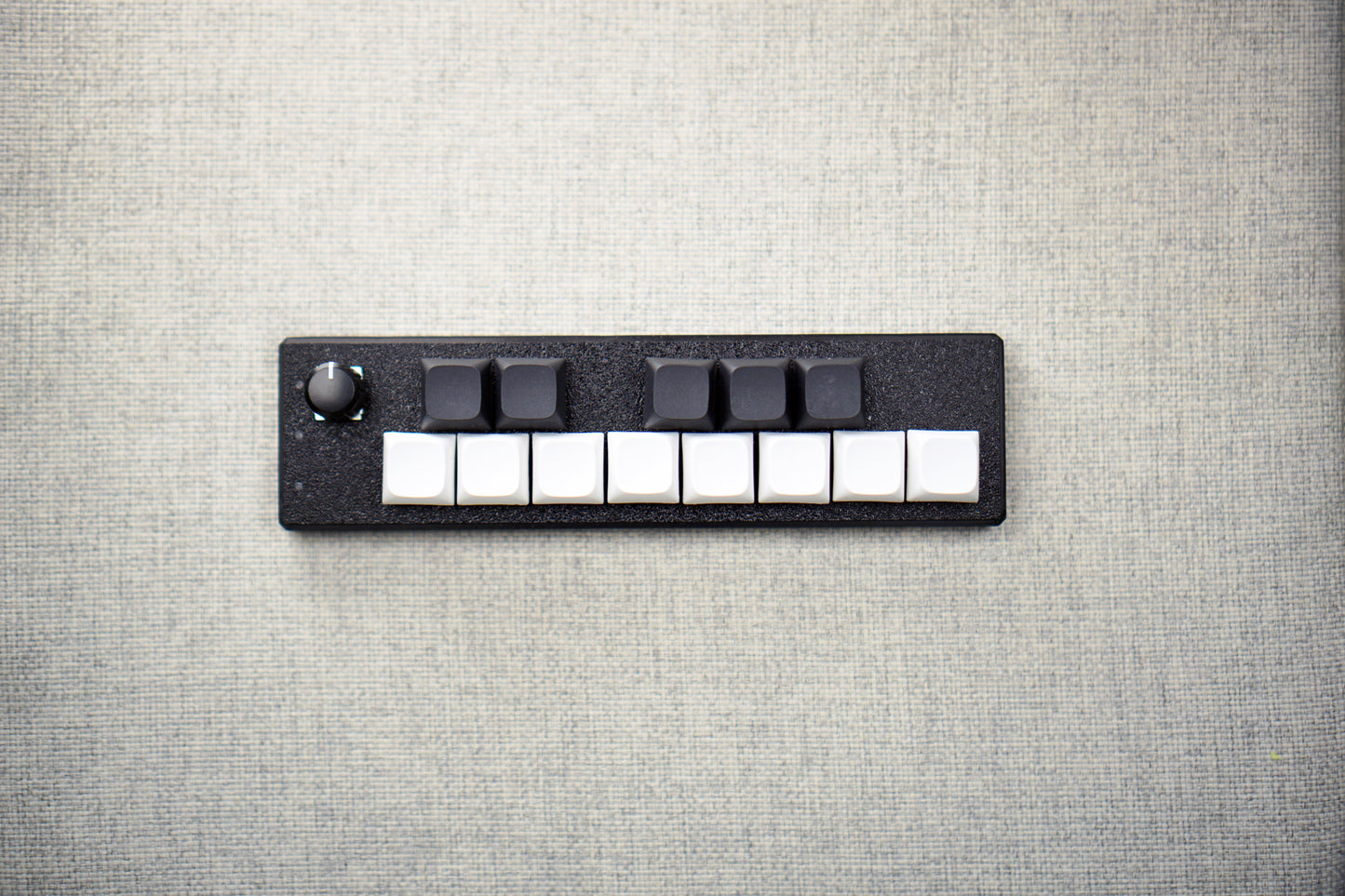

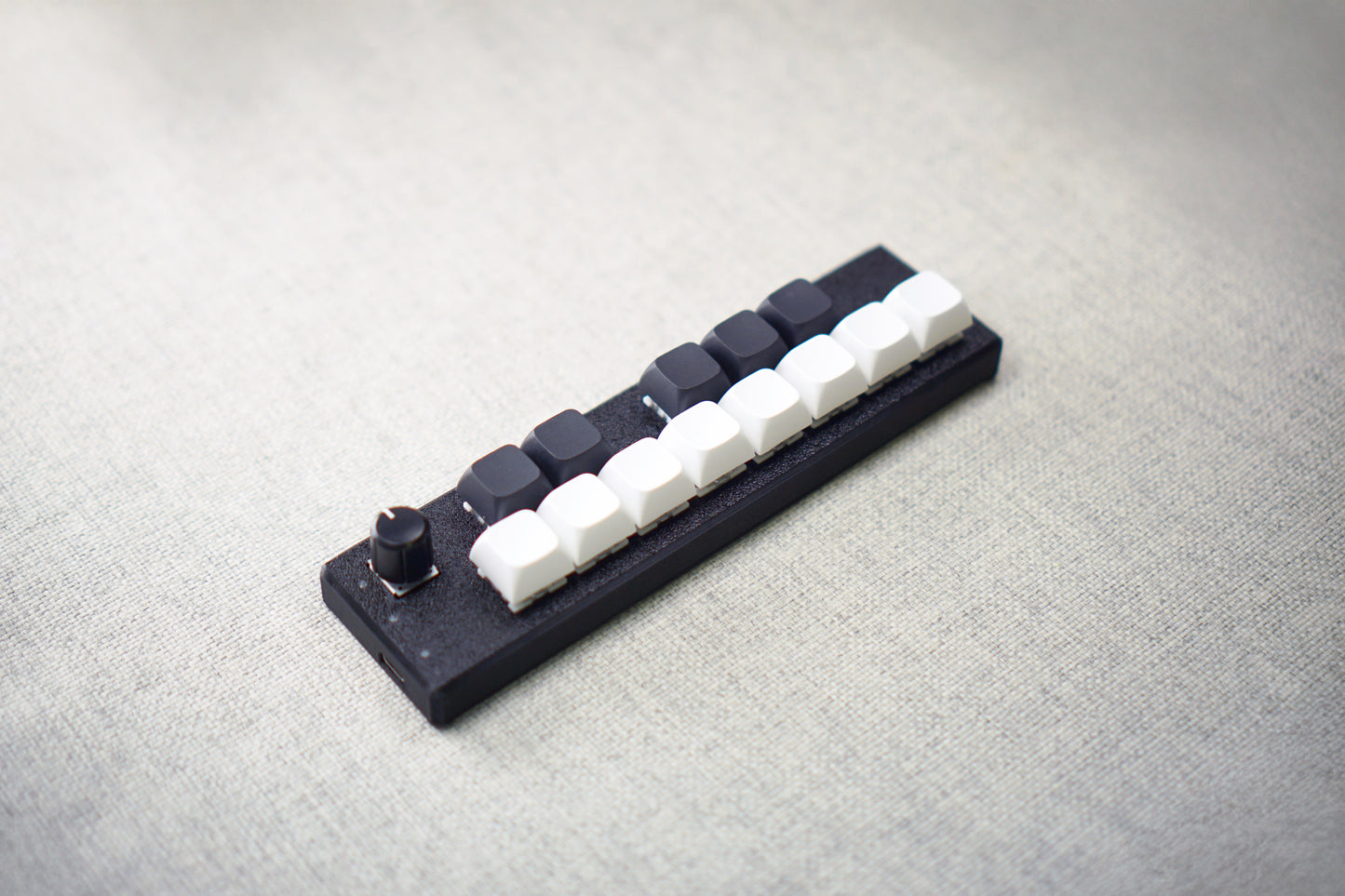

ParksTool 13K1ES Octave (13 keys + one encoder) MIDI Controller
ParksTool 13K1ES Octave (13 keys + one encoder) MIDI Controller
Couldn't load pickup availability
TECHNICAL DETAILS

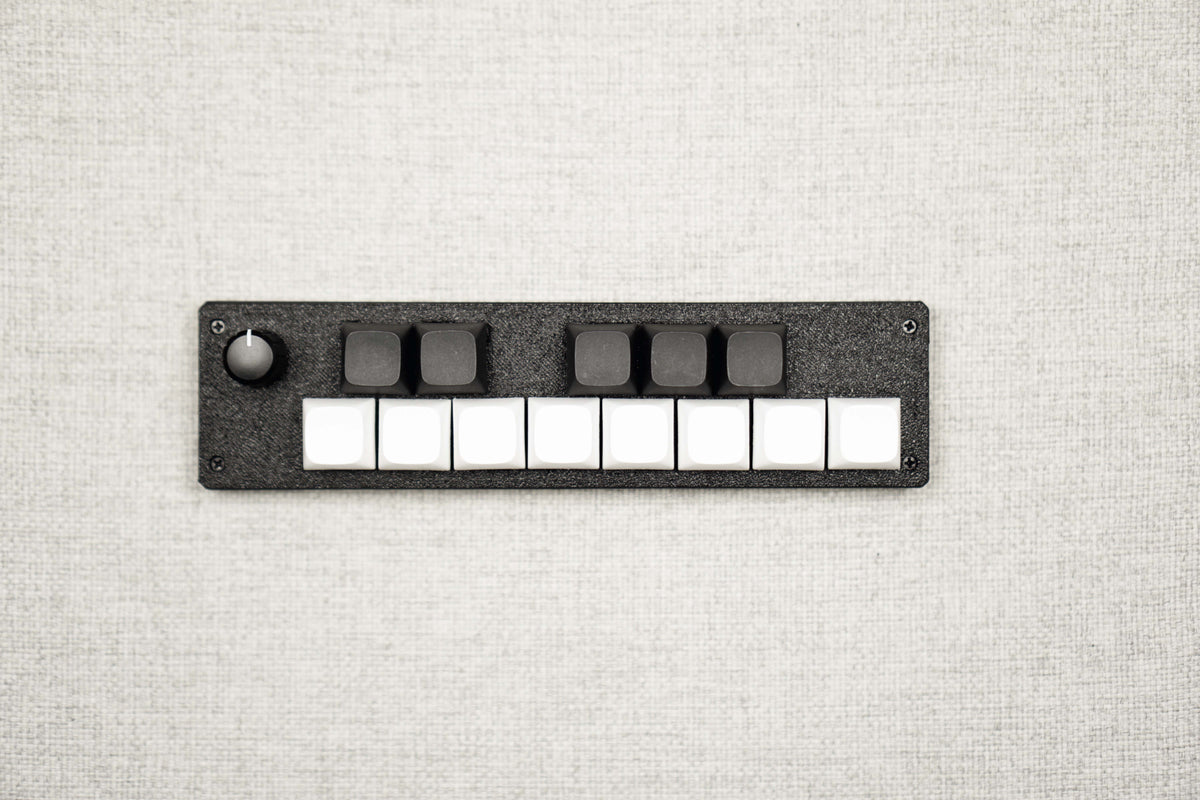

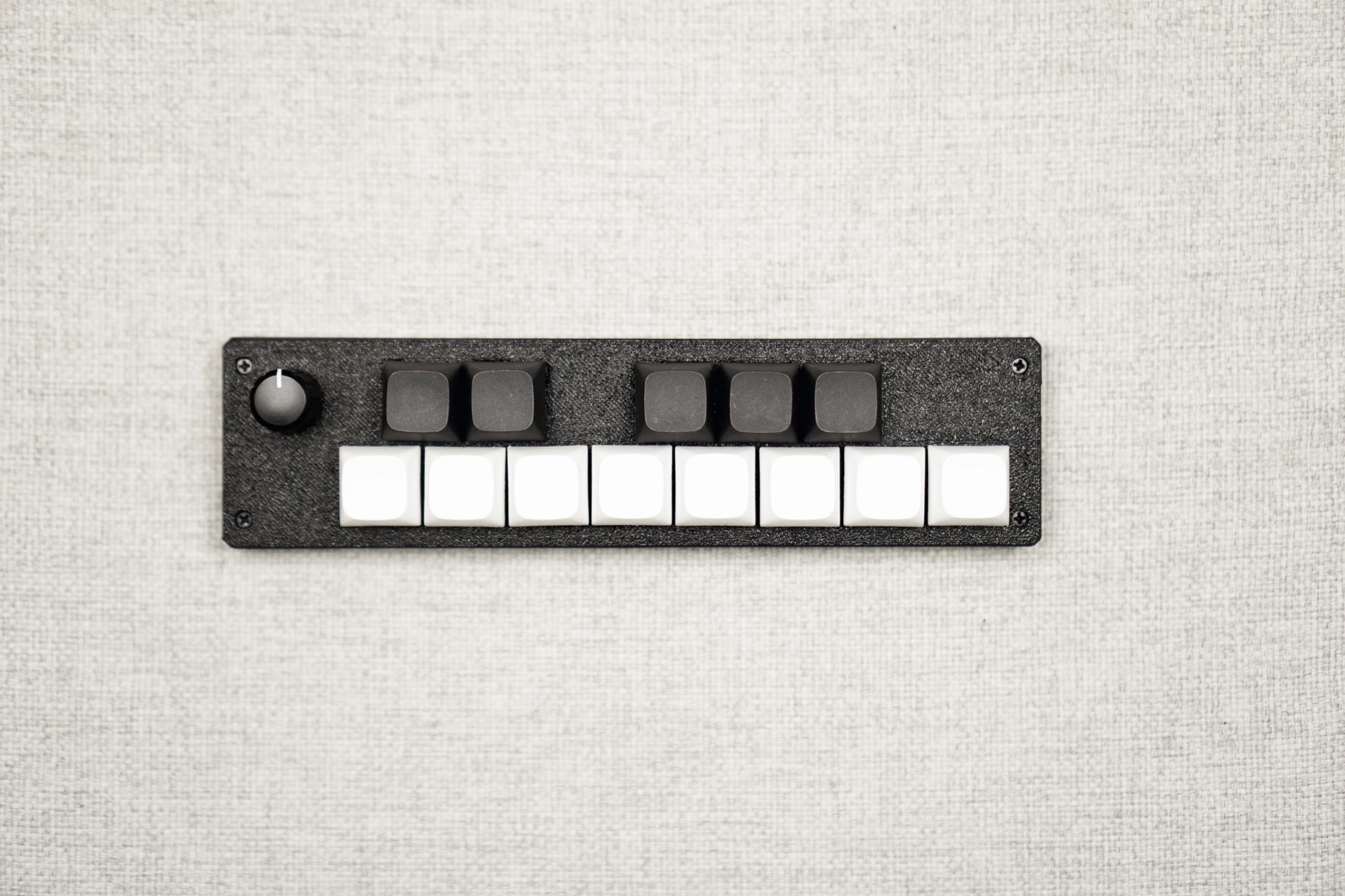

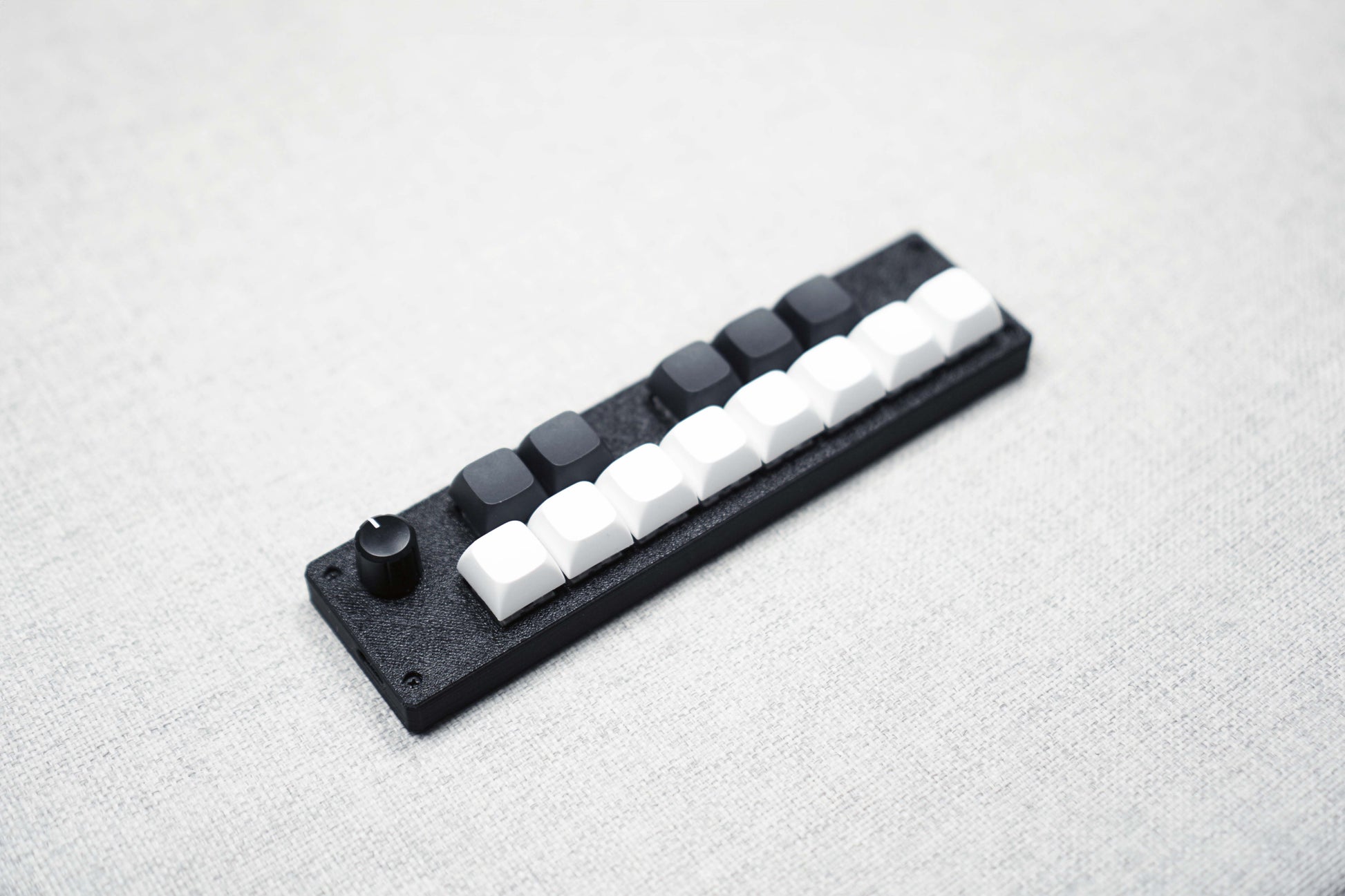

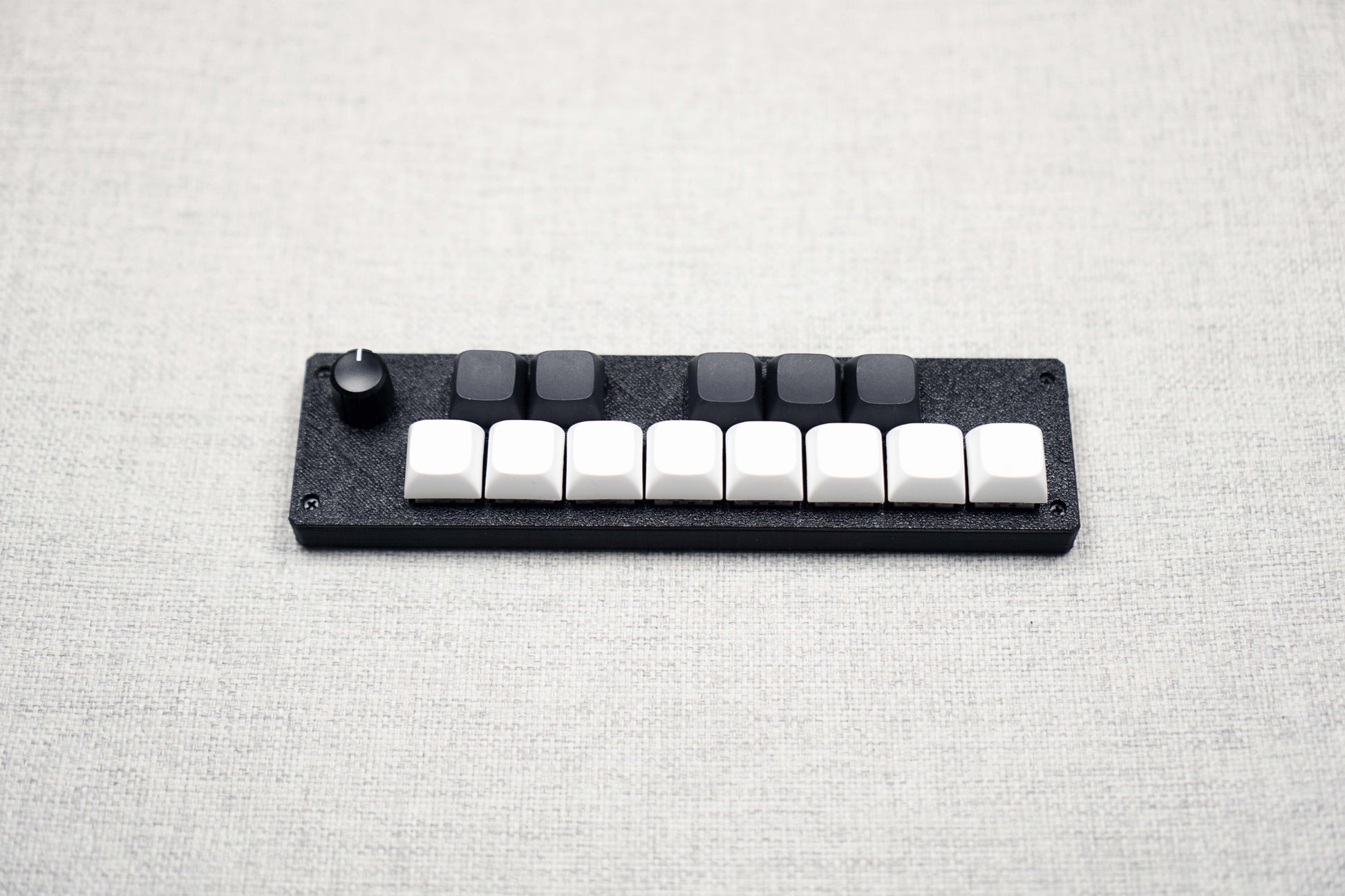

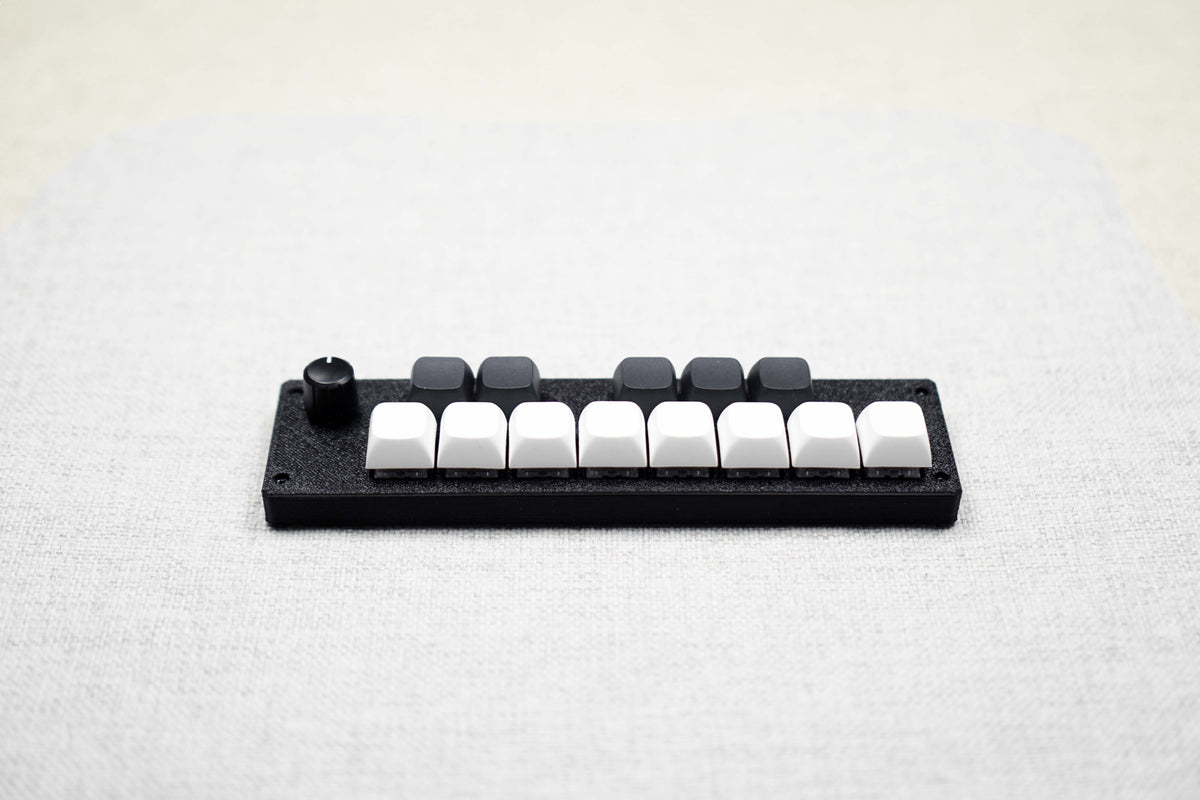

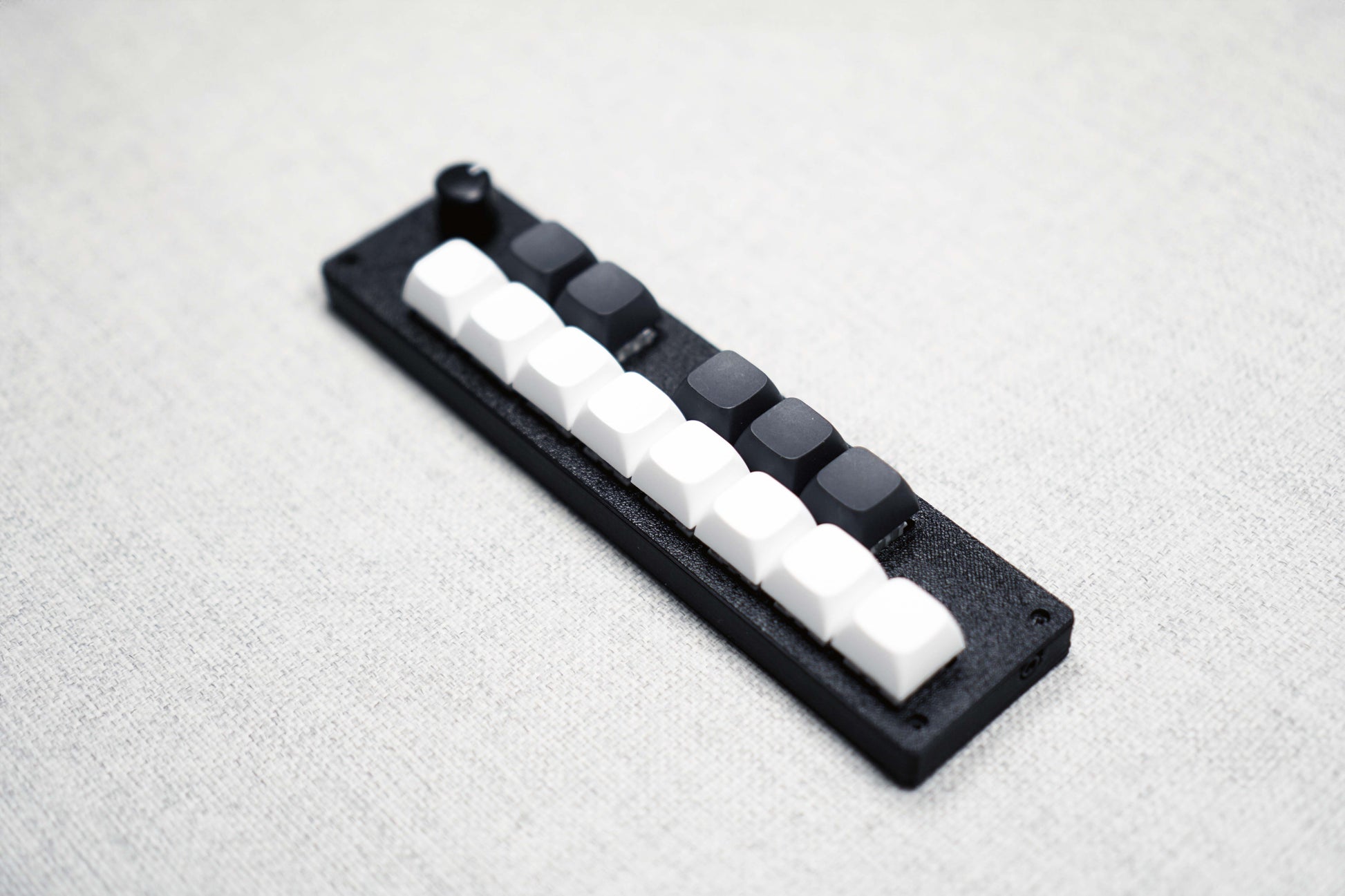

13 Mechanical keys + 1 encoder with detents (push button integrated)

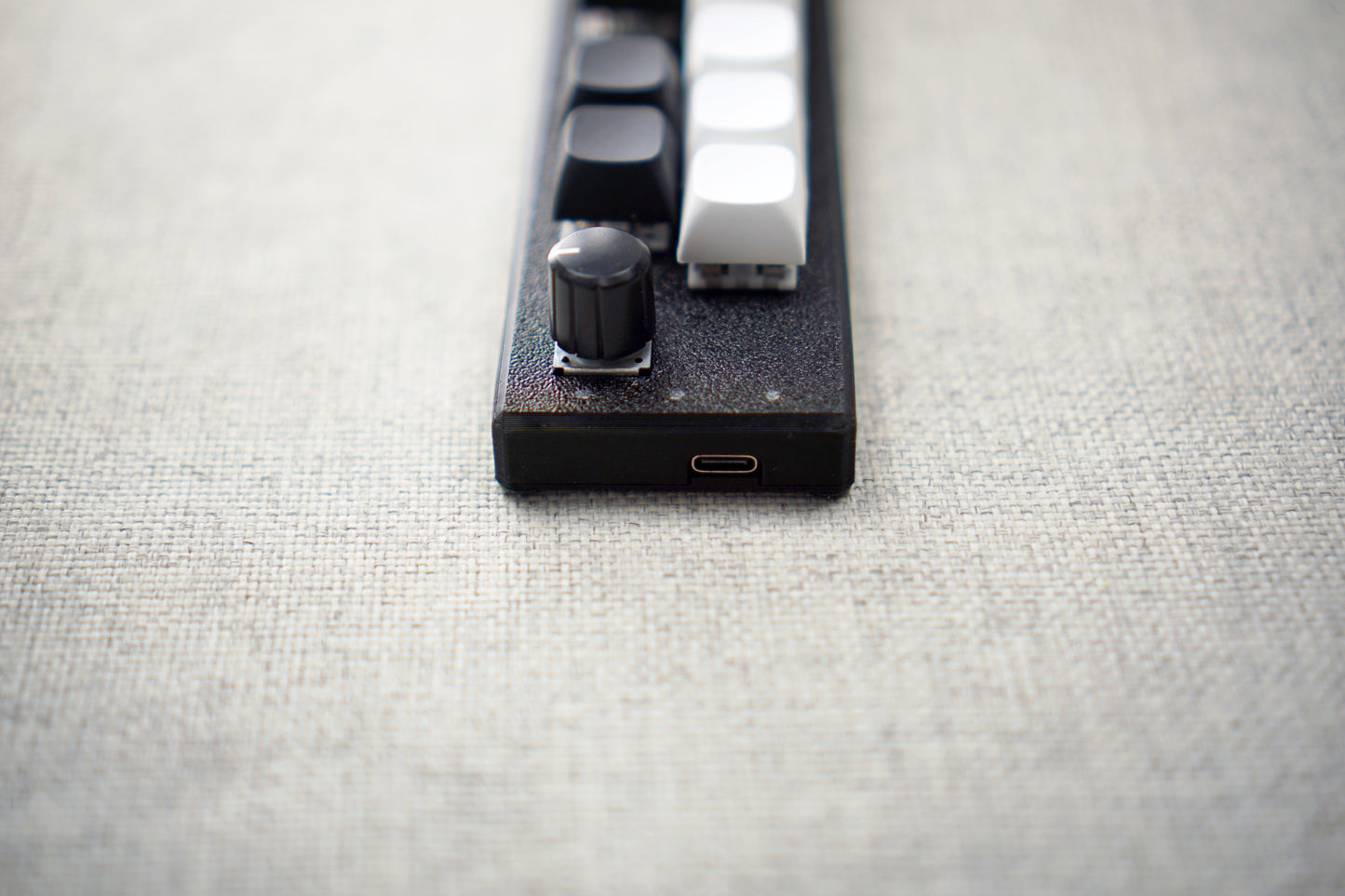

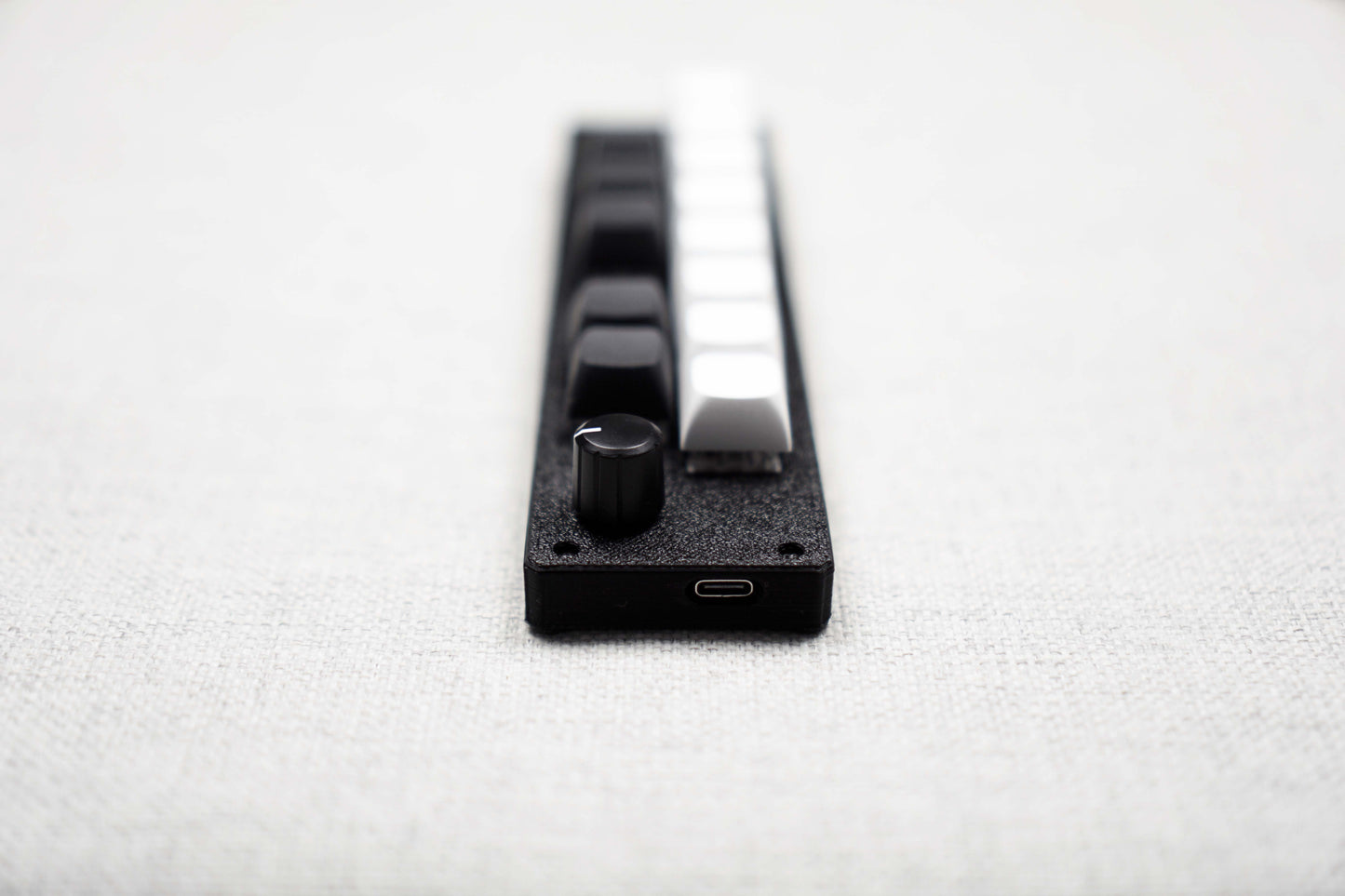

USB Type: USB type C (USB cable is not included)

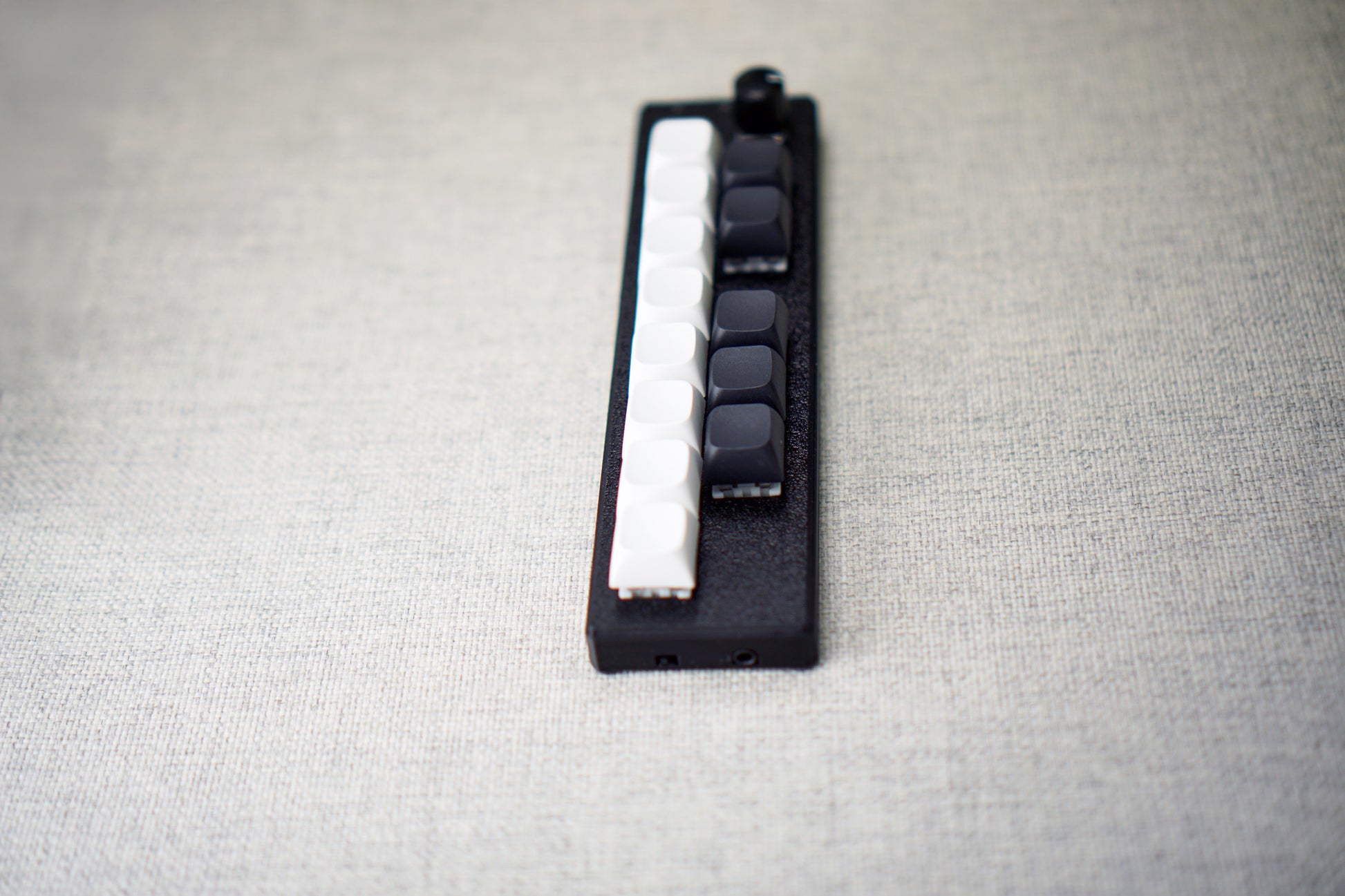

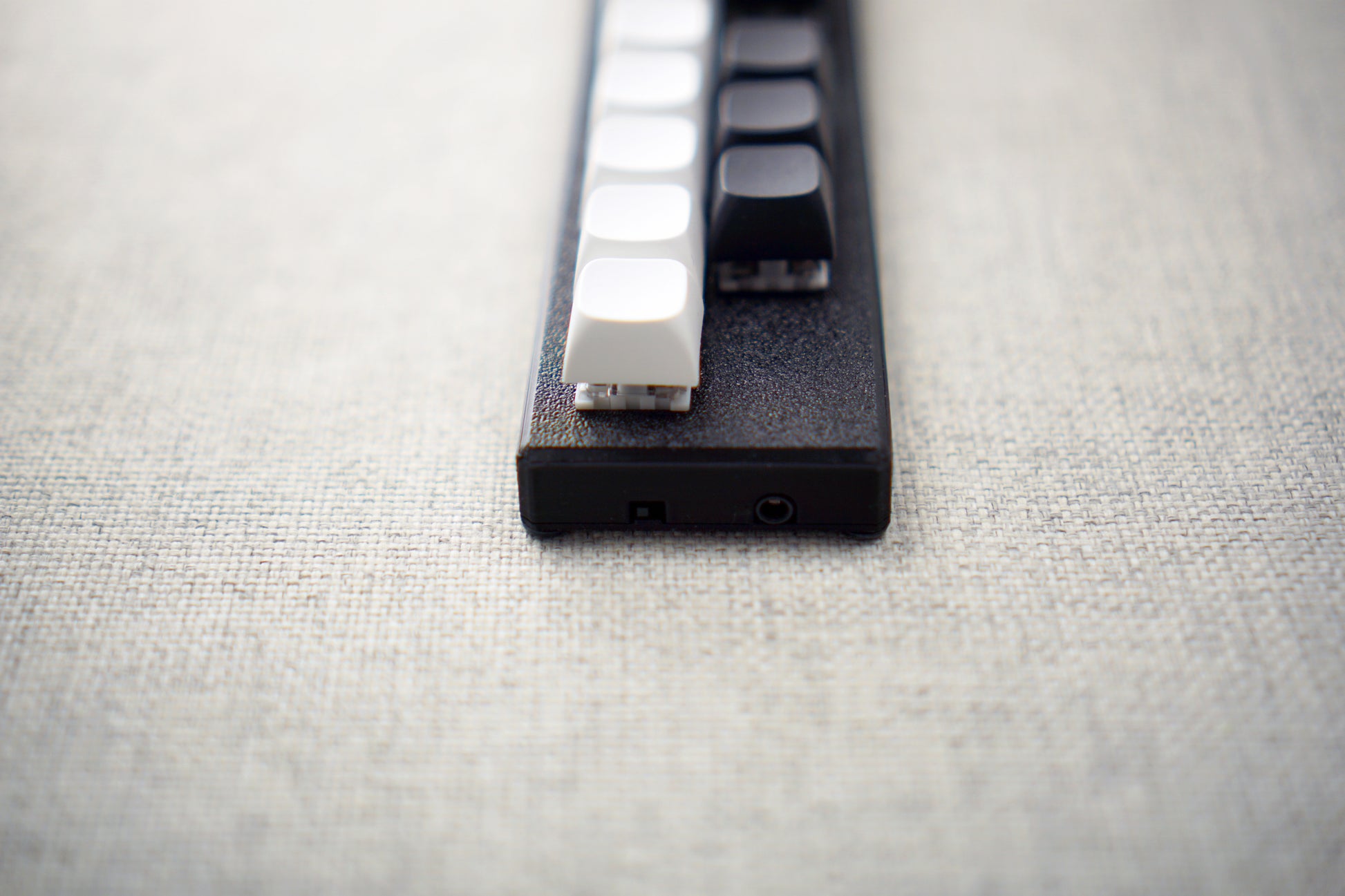

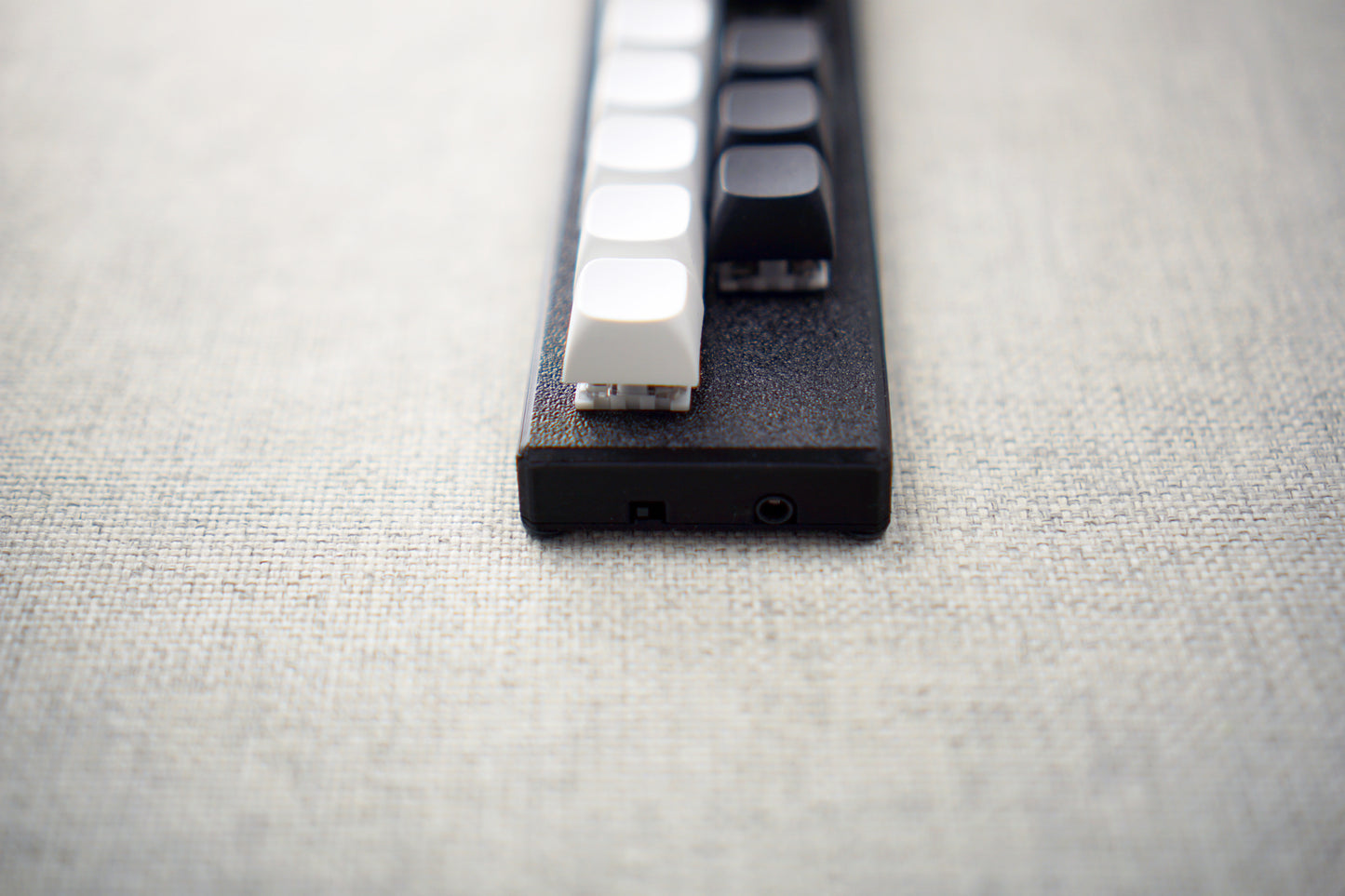

3.5mm TRS MIDI OUT (Cable is not included) (TRS switcher integrated)
Function: Keyboard / Plug and play MIDI controller
working with Mac, Windows, Linux, Android, iOS (iPAD and iPhone)

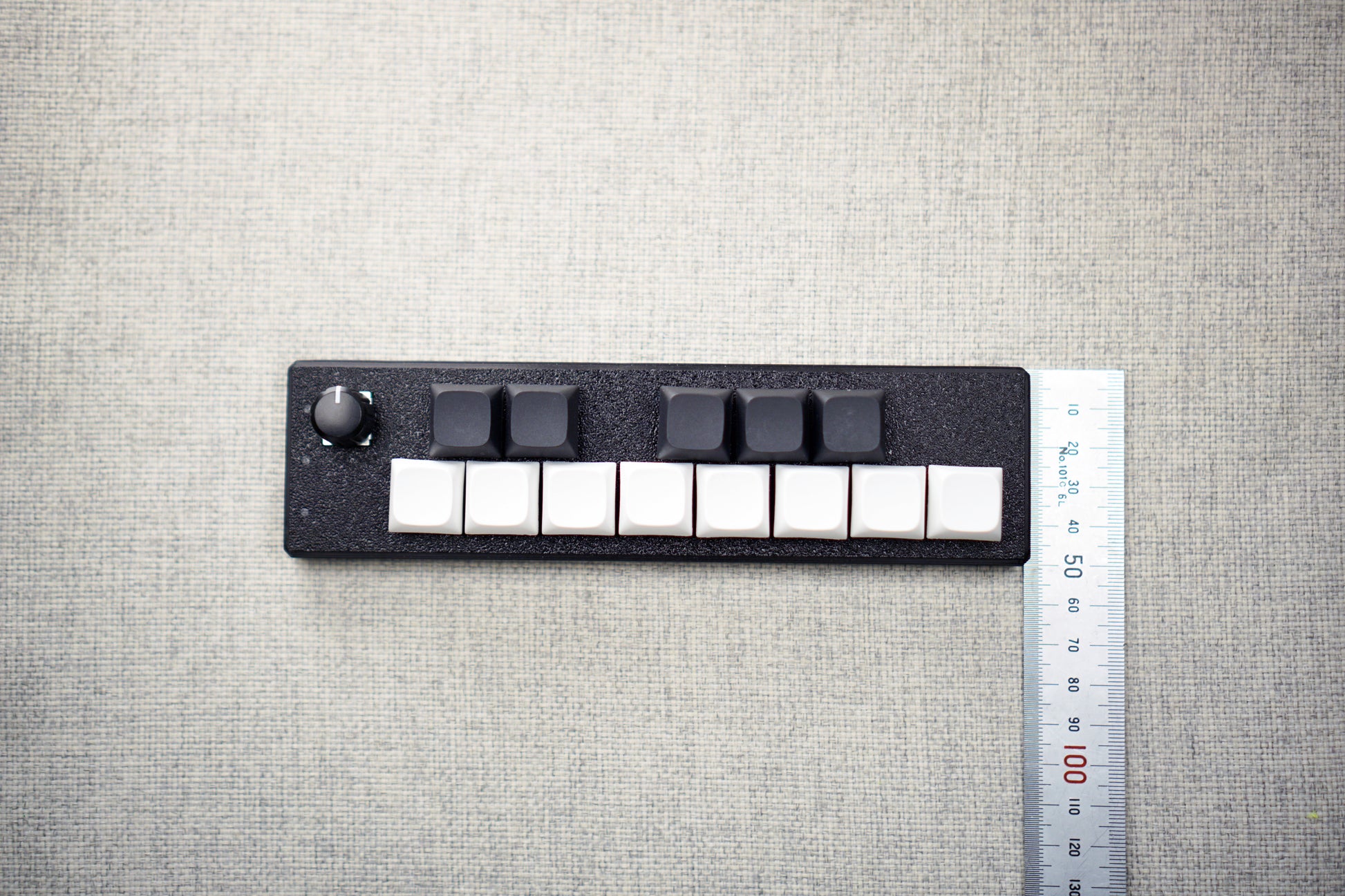

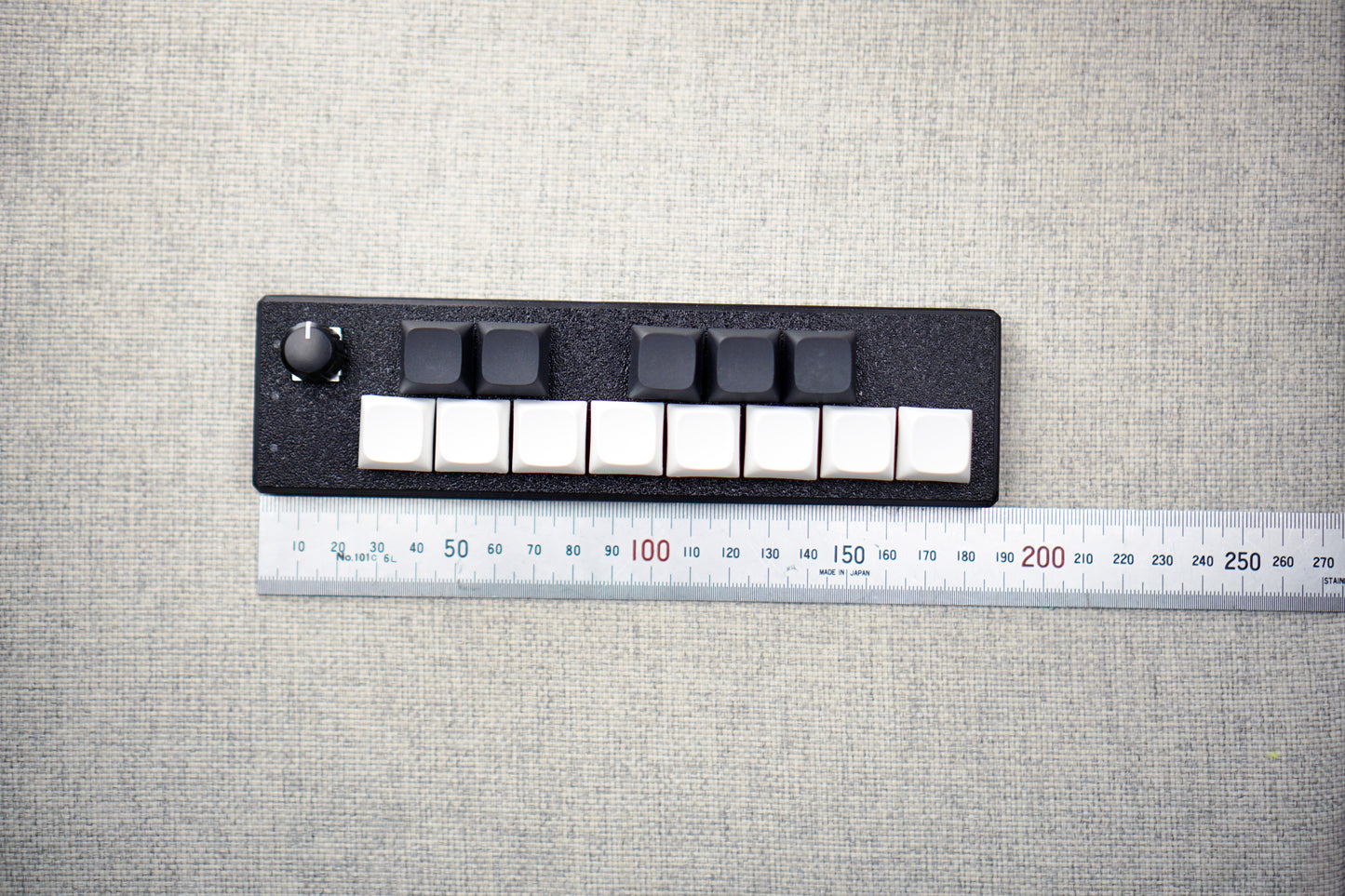

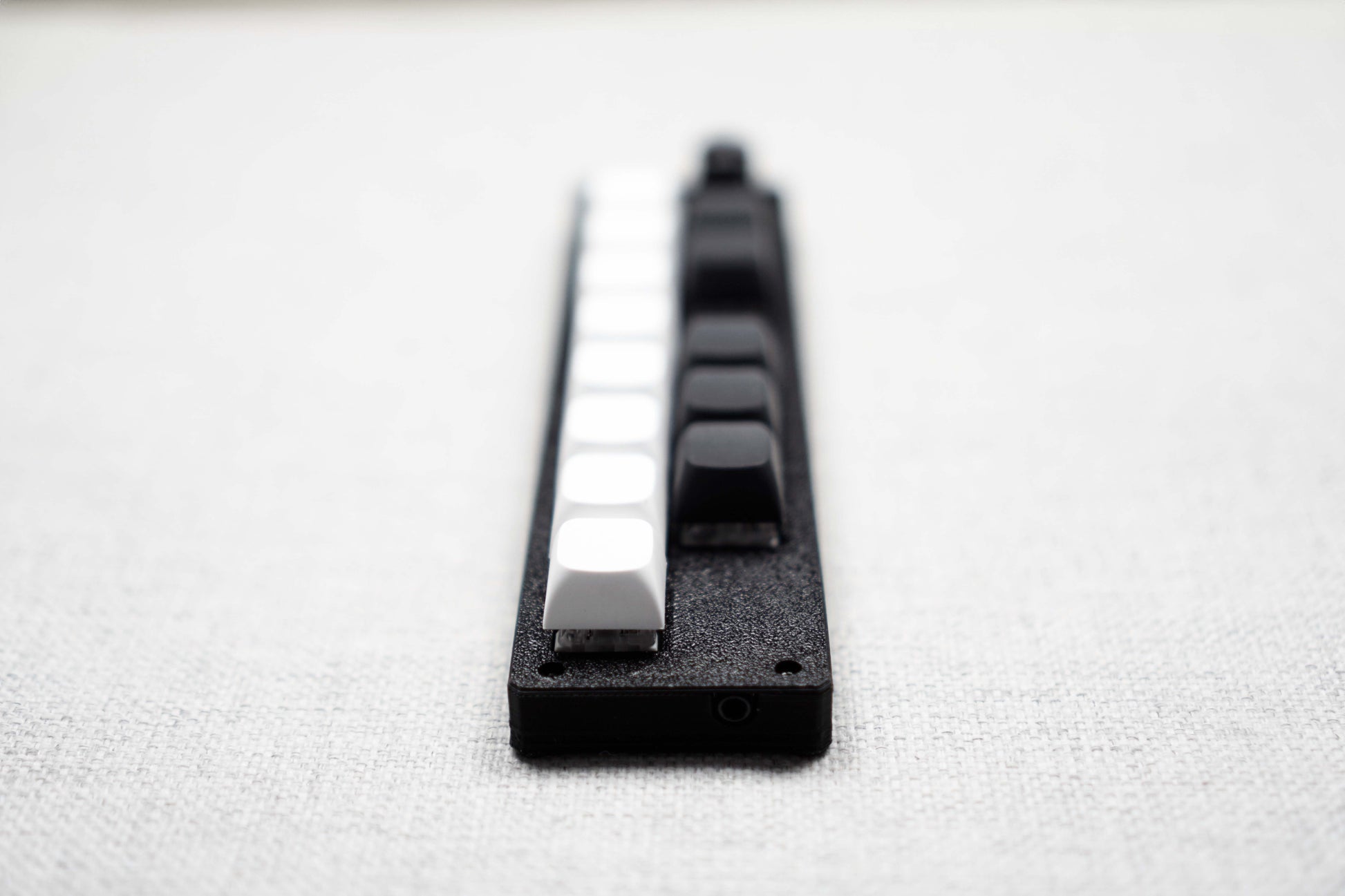

Dimensions: 187mm x 50mm x 27mm
Mechanical keyboard brown axis - hot swap
Product Manual
https://manual.parkstool.com/en/products/13K1ES-D24.html
Configuration Page
⚠️ Web Configuration Tool requires a PC (Windows/Mac + Chrome or Edge).
MIDI controller functionality works on all platforms (Windows, Mac, Linux, Android, iOS).
iOS/iPadOS: Web Configuration Tool not available (WebKit limitation).

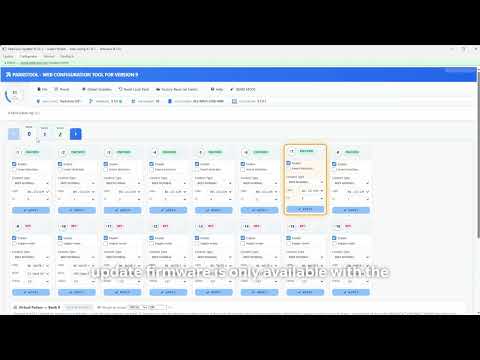

Latest Firmware Update
What is the ParksTool 13K1ES-D24?

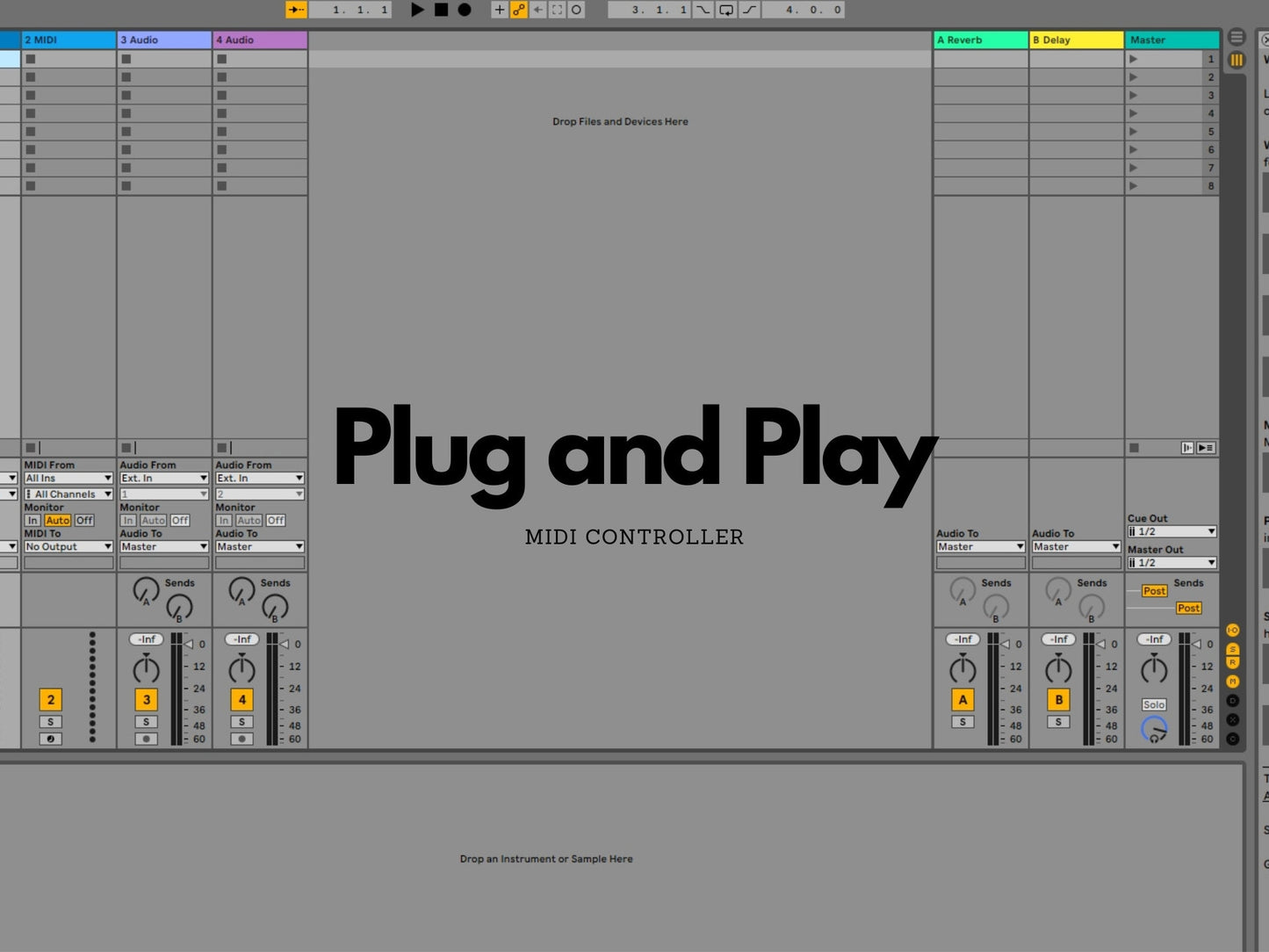

The ParksTool 13K1ES-D24 is a compact, USB-C bus-powered MIDI controller featuring 13 customizable mechanical switches + 1 clickable integrated encoder. Experience true plug-and-play functionality: plug it into any computer, tablet, or smartphone — no driver installation needed. Enjoy full configuration without any software installation using the free Web Configuration Tool directly from your browser.
Controls & Features
- Rotary Encoder (1×) — Infinite rotation with no hard stops. These are push switch integrated encoders, meaning you can press the knob itself to actuate a MIDI key command/note. Sends relative MIDI values, enabling seamless jump-free control in any DAW. Supports DAW-to-hardware feedback (bidirectional) when connected via MIDI out.
- Mechanical Keys (13×) — Mechanical switch for satisfying actuation. Configurable via software as momentary (press/release) or toggle (on/off). Assign Bank Change, Note, CC, keyboard shortcuts, or media keys.
- Bank System — Switch between multiple MIDI layouts (banks) on the fly, multiplying your controls without adding hardware.
- TRS MIDI Out (3.5mm) — Connect directly to hardware synths, drum machines, and audio recorders without a computer. Supports Type A and Type B (switchable).

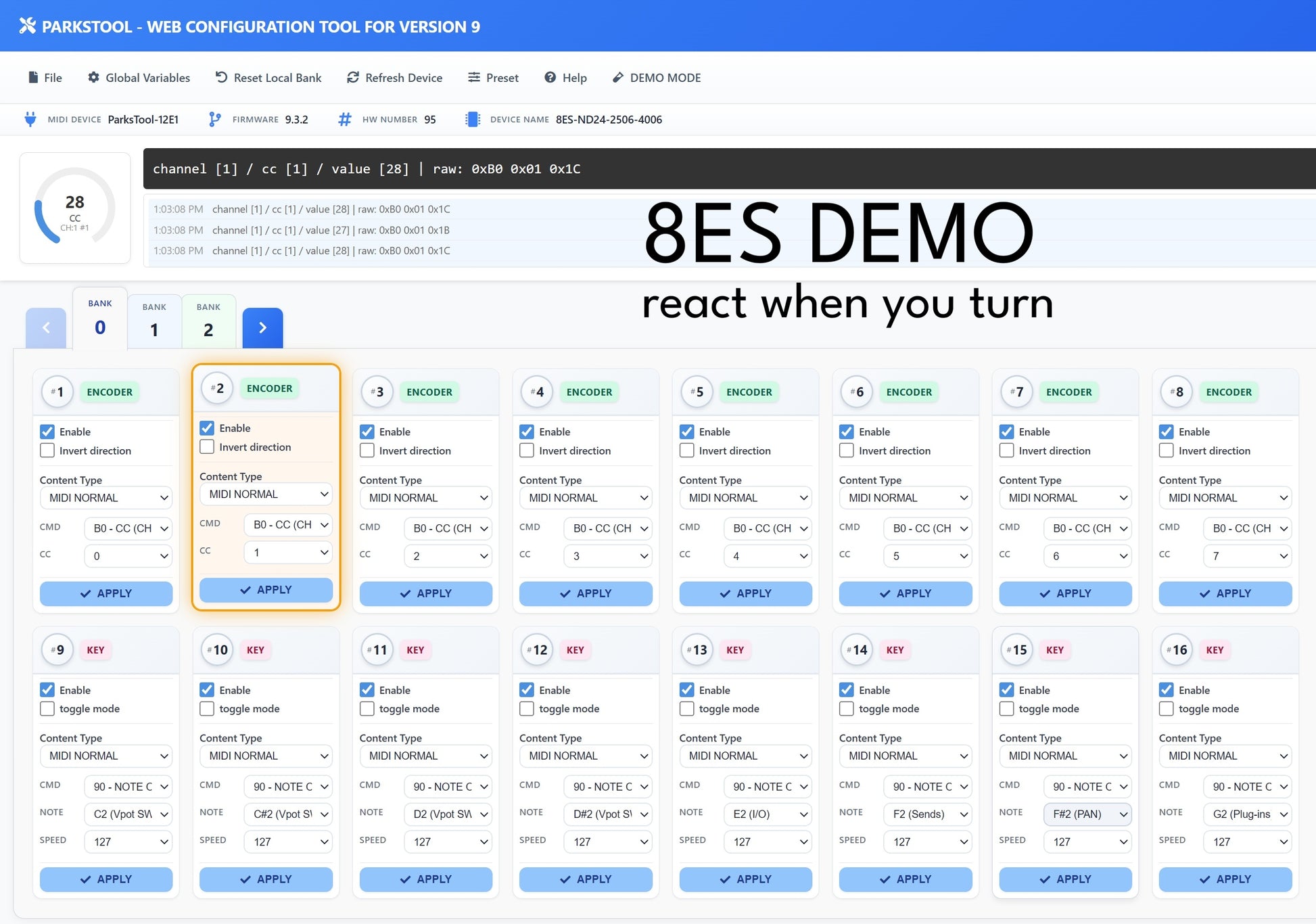

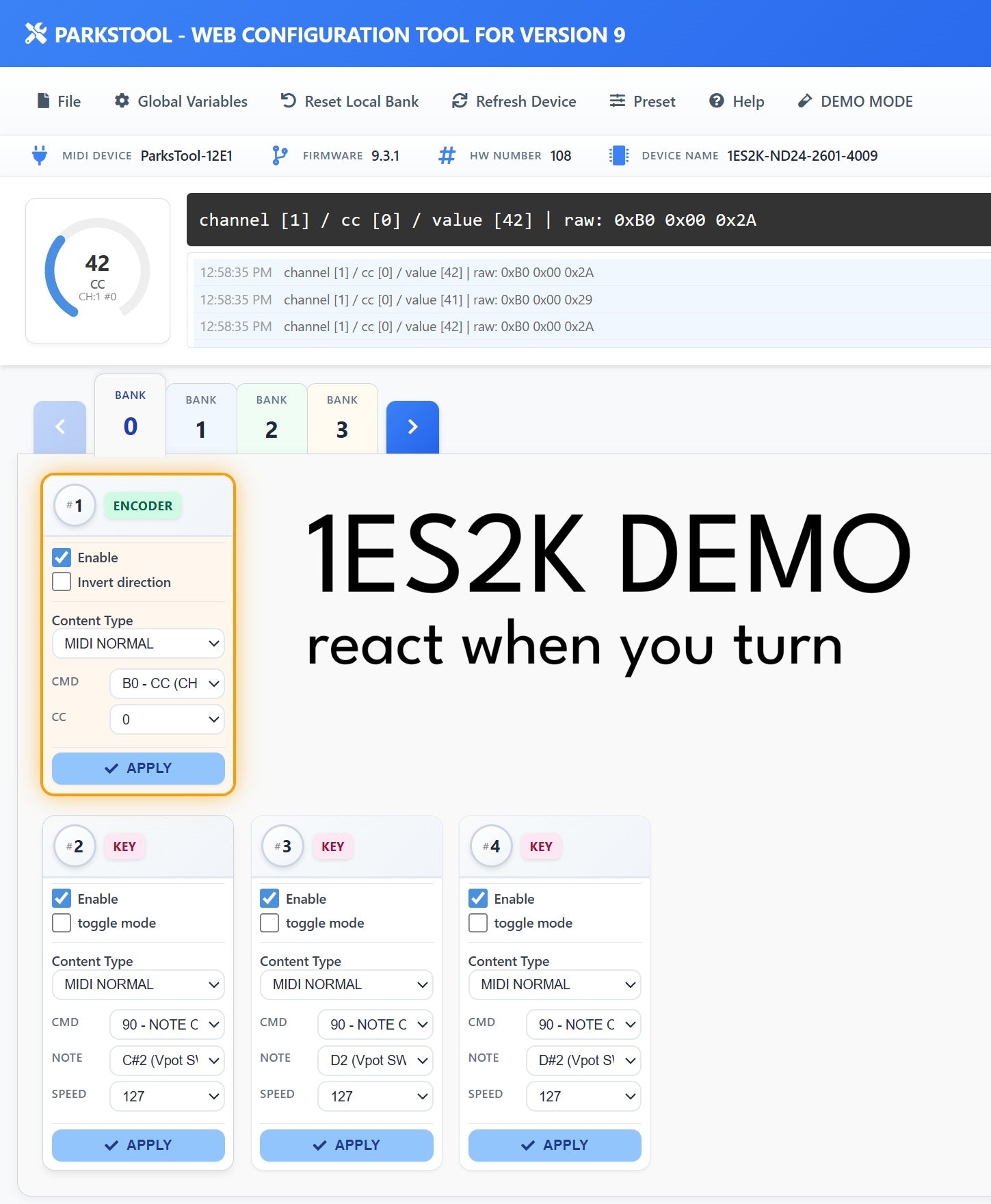

- Web Configuration Tool — Remap every control to any MIDI mode: CC, Note, Pitch Bend, Program Change, 14-bit CC, NRPN, SysEx, keyboard shortcuts, or media keys.
Technical Specifications
| Keys / Switches | 13 × mechanical switch, software-supported momentary & toggle modes |
|---|---|
| Rotary Encoders | 1 × clickable switch integrated encoder, infinite rotation, relative control, DAW feedback |
| Dimensions | 187mm x 50mm x 27mm |
| Connectivity | USB Type-C (MIDI + power), 3.5mm TRS MIDI out |
| Power | USB bus-powered (5V, under 150 mA) |
| Driver / Setup | True plug-and-play. No driver installation required — class-compliant USB MIDI |
| Compatibility | Windows 10+, macOS, Linux, Android, iOS |
| Configuration | Full configuration without any software installation via the Web Configuration Tool (config.parkstool.com) |
| Protocol Support | CC, Note, Pitch Bend, Program Change, 14-bit CC, NRPN, SysEx, MCP |
Perfect For
- DAW parameter control — EQ, effects, send levels
- Plugin automation — VST/AU knob assignments
- Video editing — timeline scrubbing, color grading
- Live performance — real-time effect modulation
- Keyboard shortcuts and media key assignments (volume, play/pause, etc.)
- Mackie Control Protocol (MCP) integration for DAW mixing surfaces
⚠️ Important Notes
- D24 signifies 24 detents, providing 24 distinct clicks per full rotation for precise tactile feedback.
Frequently Asked Questions
What is the ParksTool 13K1ES-D24?
The ParksTool 13K1ES-D24 is a compact USB-C MIDI controller featuring 13 customizable mechanical switches + 1 clickable integrated encoder. It requires no driver installation and works immediately when plugged into any computer, tablet, or smartphone. Just true plug-and-play functionality.
Which DAWs does the ParksTool controller work with?
It works natively with all major DAWs including Ableton Live, Logic Pro, Cubase, FL Studio, Reaper, Pro Tools, GarageBand, and more. No additional plugins or setup are required.
Does it support Mackie Control Protocol (MCP)?
Yes. The ParksTool controller fully supports Mackie Control Protocol (MCP). For example, faders can be assigned as Pitch Bend messages, and encoders as V-Pot (relative) to control DAW mixing surfaces. However, these are freely reassignable—you can map a fader as V-Pot or an encoder as Pitch Bend if you prefer. Bank change keys allow multi-channel control. Presets for MCP are available in the Web Configuration Tool.
How do I customize the MIDI mapping?
Configuration is completely browser-based with zero software installation required. Just use the free ParksTool Web Configuration Tool at config.parkstool.com (Chrome or Edge). Changes are saved directly to the device memory instantly.
What is a rotary encoder, and why use one?

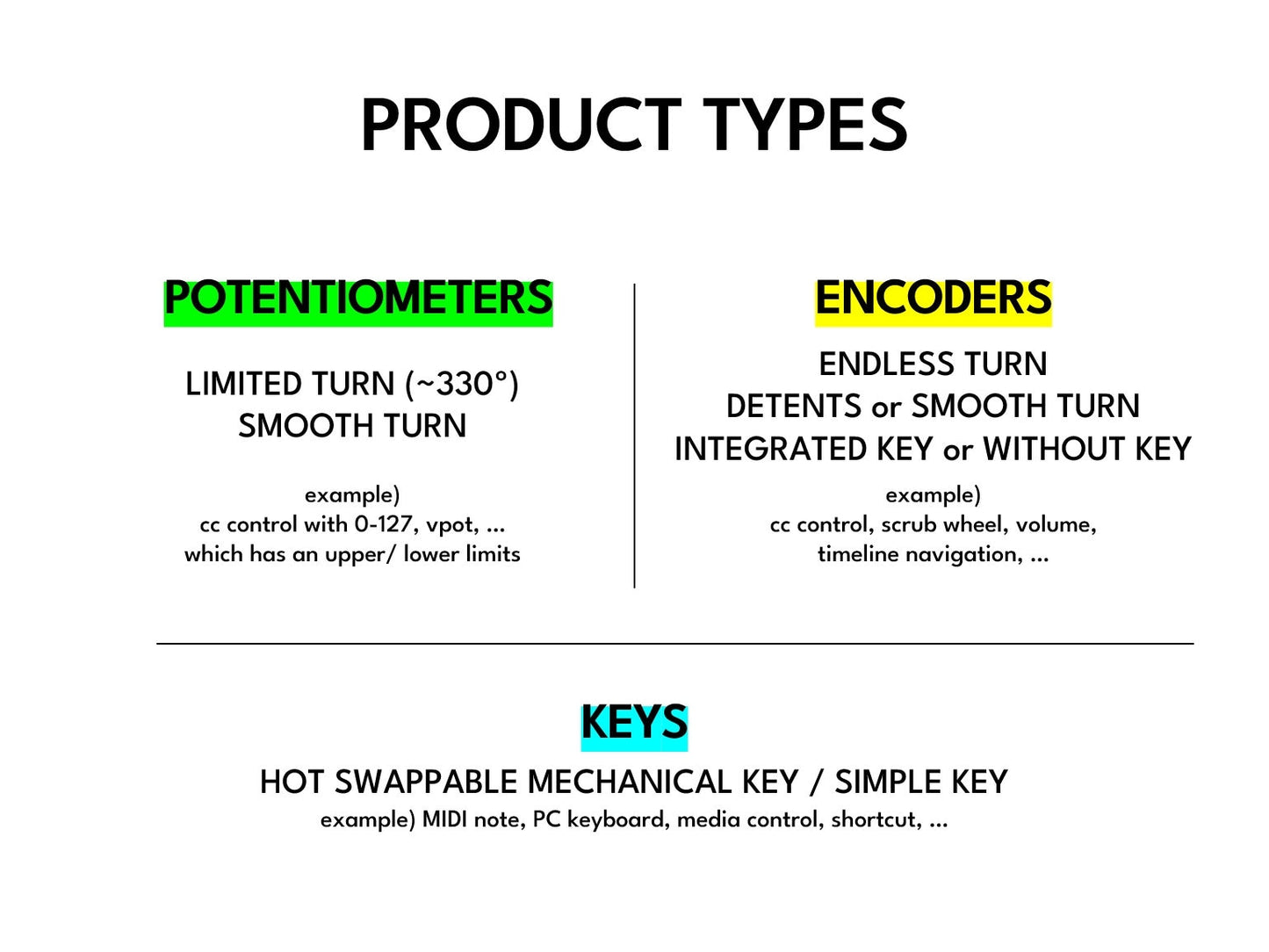

A rotary encoder rotates infinitely with no hard stops. It sends relative MIDI values (increment or decrement), which prevents value jumps when switching parameters. Additionally, these are push button integrated encoders. You can press the knob to send MIDI Note or CC messages, providing both rotation and switch functionality in a single control. It supports bidirectional DAW feedback — when the DAW changes a parameter, the encoder position updates accordingly.
Do I need to install a driver or any software?
Absolutely not. It is a class-compliant USB MIDI device, meaning no drivers are needed. Even the configuration is done through a web browser, ensuring your system stays clean without installing extra wrapper software or background services.
Compatibility
Works with Ableton Live, Logic Pro, Cubase, FL Studio, Reaper, Pro Tools, GarageBand, Studio One, Bitwig Studio, and any USB MIDI-compatible software. Operating systems: Windows 10+, macOS, Linux, Android, iOS.
