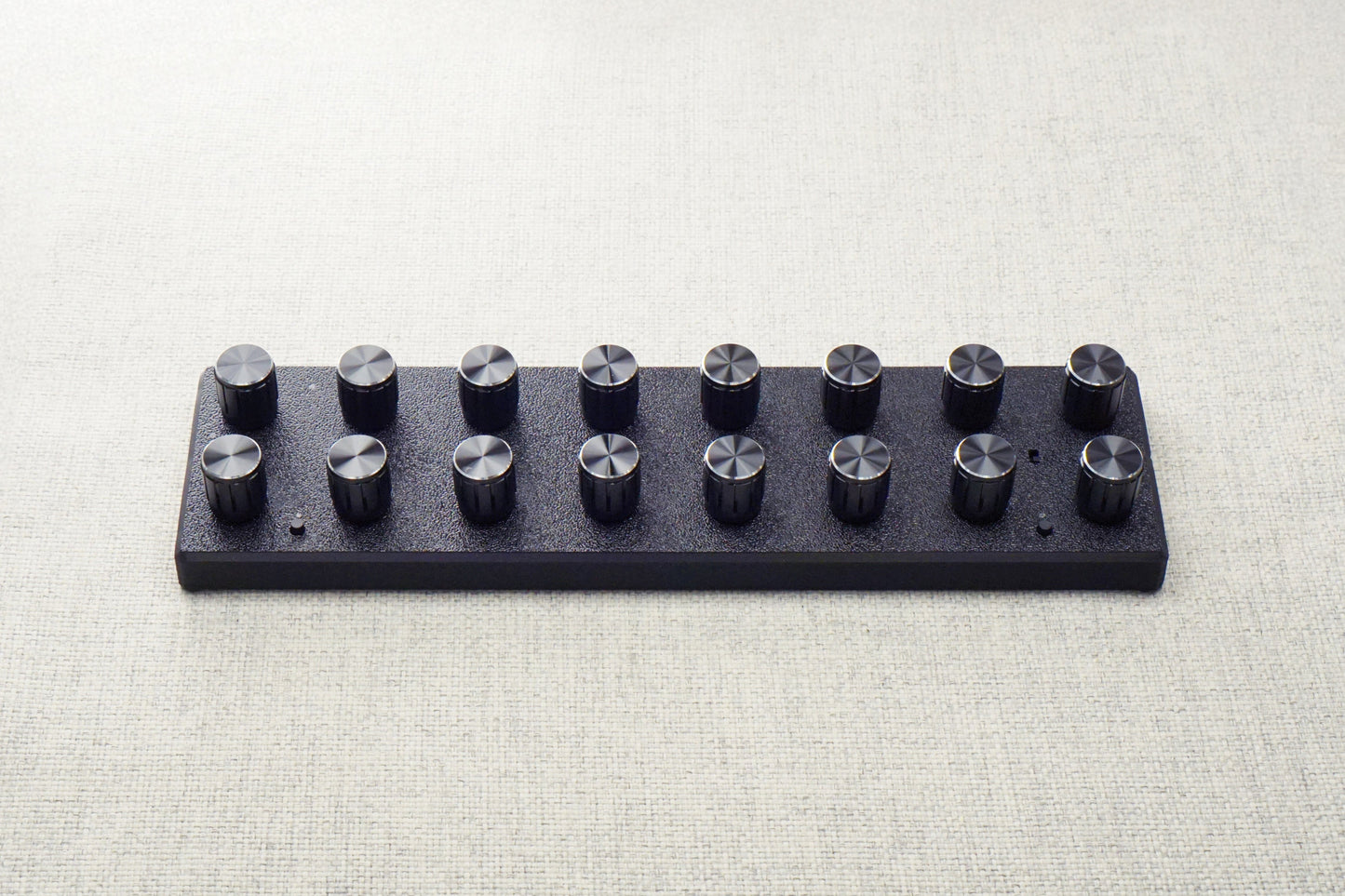

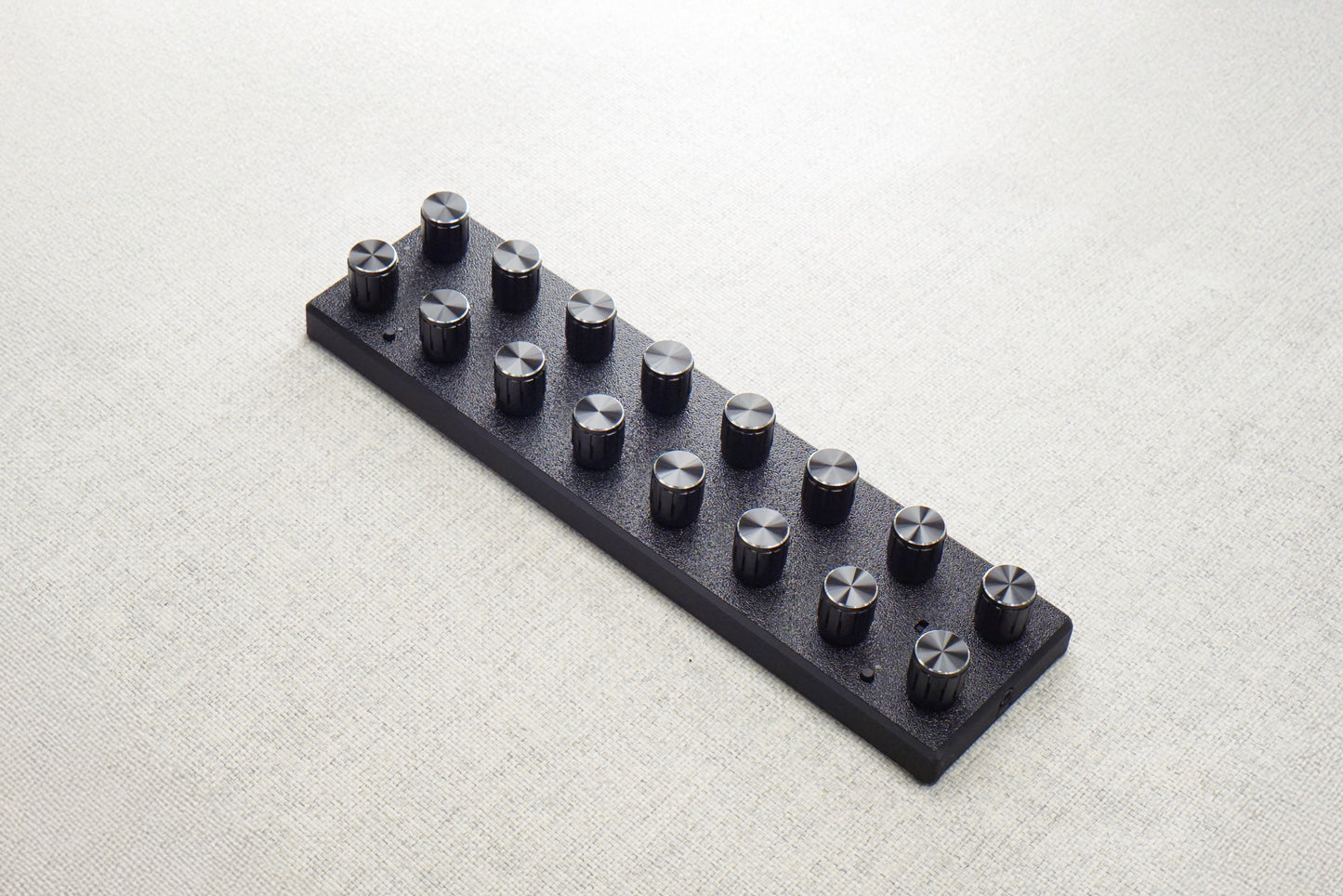

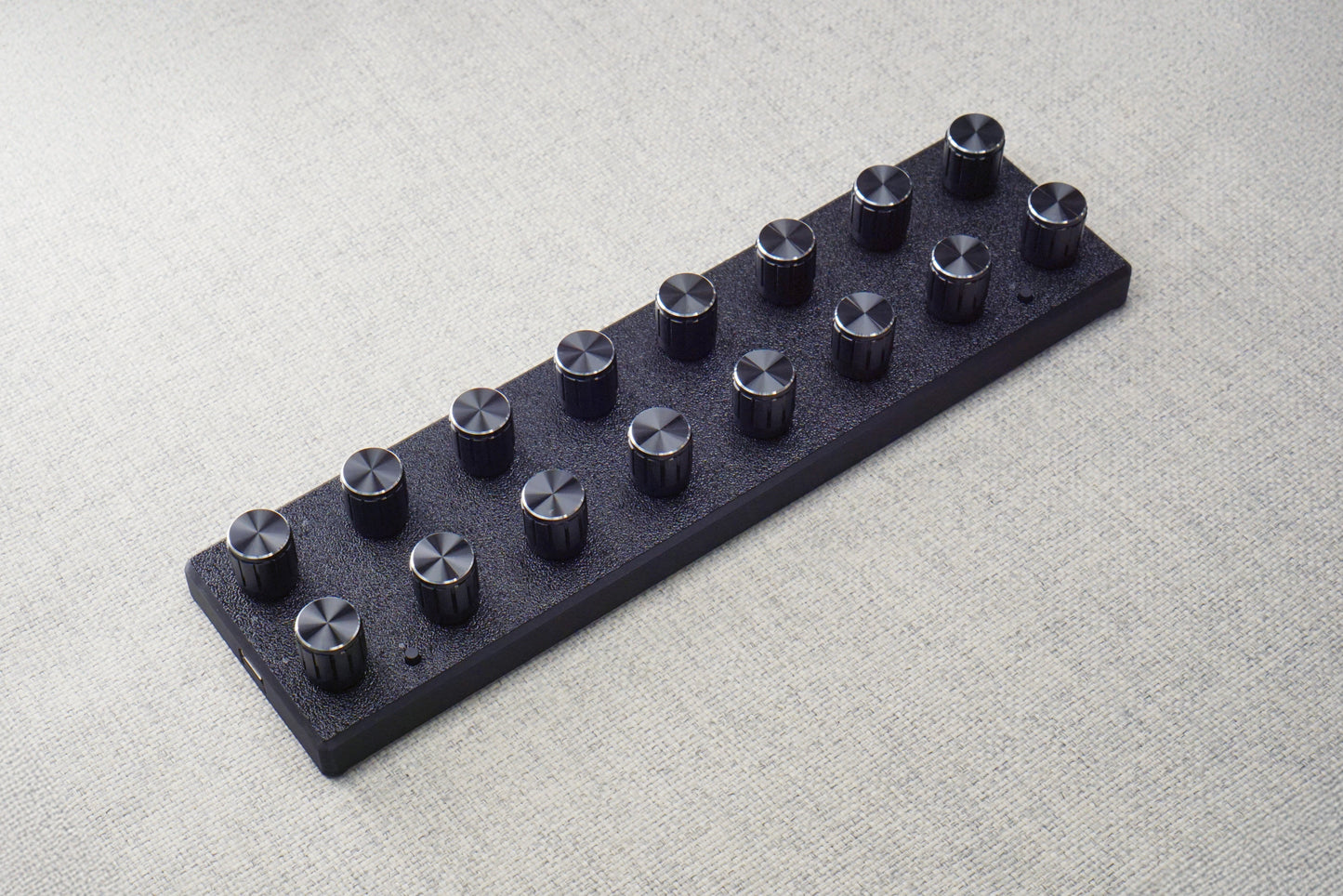

ParksTool 16E (16 Encoders) MIDI Controller

ParksTool 16E (16 Encoders) MIDI Controller

Regular price €150,00 EUR
Regular price Sale price €150,00 EUR
Sale Sold out
Tax included.

16 ENCODERS WITH INTEGRATED PUSH BUTTON

DEVELOPMENT IN PROGRESS

Introducing the Minimalistic endless encoders dial with (without) integrated buttons - a highly configurable device that can be customized to fit your needs. Musicians can use it as a MIDI controller, while creators can use it for keyboard, mouse, and media control. With no need for programming, simply visit our web configuration tool and set it up to your liking.

Save time and increase productivity. It can be customized for use with any application that can be controlled with a keyboard, such as Illustrator or Photoshop. I created this device because I needed it myself - navigating video timelines precisely was always a challenge. With this dial, it's a breeze.

It also makes for an excellent gift for friends, family, or anyone who loves to edit, create, or make something great. Give them the gift of time-saving productivity with our dial.

FEATURES

[MIDI Controller]

Works as a midi controller. Plug and Play USB Midi controller.

[HCI]

works as a keyboard, mouse, and media controllers

[ Sound Devices 833 compatible ]

This device can control fader or trim on channels over 7 of Sound Devices 833. for example, channel 7,8,9,10,11,12 can be controlled



TECHNICAL DETAILS

USB Type: USB C (USB cable is not included)
3.5mm TRS Type A (Cable is not included) (some products have a type switcher)
Function: left turn, right turn, click (all customizable; only with integrated switch version)
Material: PLA (plastic body) + Aluminum(knob) or plastic
Available Software: Adobe Effects, Premiere Pro, Photoshop, Illustrator, or any software which allows keyboard shortcuts.
Plug and play MIDI
Tested with Mac, Windows, Linux, Android, iOS (iPAD and iPhone)

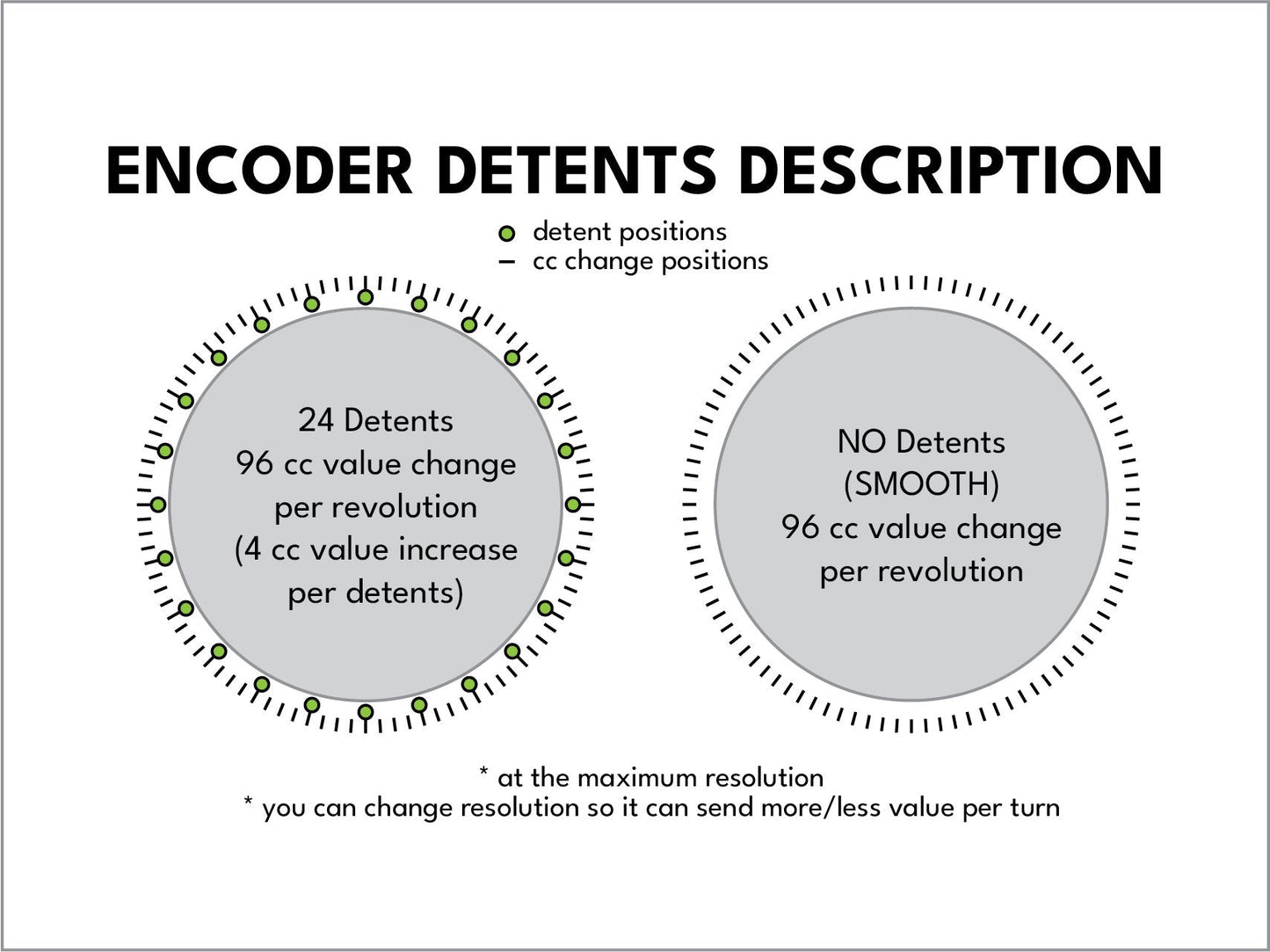

ENCODER MECHANICAL DETAIL

clickable button integrated and smooth turn

PLUG AND PLAY - MIDI and MCP(Mackie control protocol)

CC and channels are configurable
you can set any dials and keys as faders, vpots, or keys
Fader 1 to 8 and 9 (for master)
Scrub wheel, Vpot 1 to 8
Rec/Rdy 1 to 8, Solo 1 to 8, Mute 1 to 8, Select 1 to 8, Vpot Switch 1 to 8, I/O, Sends, PAN, Plug-ins,EQ, Dyn, Fader Bank Left, Fader Bank Right, Channel Left, Channel Right,
Flip,Edit, Name/Value, SMPTE/Beats, F1 to F 16 , Shift, Option, Control, Alt, On, Rec/Rdy, Undo, Snapshot, Touch, Redo, Cancel, Enter, Marker, Mixer, < Frame, Frame >, Loop, PI, PO,
Home, End, Rewind, Fast Forward, Stop, Play, Record, Cursor Up, Cursor Down, Scrub Button, Zoom,
Cursor Left, Cursor Right, fader touch 1 to 8, fader touch master
Sound Device 8 series trim and fader control available

HCI

[KEYBOARD - US key layout standard keys example]
a b c d e f g h i j k l m n o p q r s t u v w x y z
RETURN(enter) ESC BACKSPACE TAB Space - = [ ] \ ; ' ` , . /
CAPS LOCK F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
PRINTSCREEN SCROLL LOCK PAUSE INSERT HOME PAGE_UP DELETE END PAGE DOWN
RIGHT ARROW LEFT ARROW DOWN ARROW UP ARROW NUM LOCK
POWER KEYBOARD_VOLUME_UP KEYBOARD_VOLUME_DOWN KEYBOARD_STOP
LEFT (CTRL SHIFT ALT WINDOW CMD) RIGHT (CTRL SHIFT ALT)

[MEDIA KEYS]
RECORD, FAST_FORWARD
REWIND, NEXT, PREVIOUS, STOP, PLAY_PAUSE, PAUSE

[VOLUME]
MUTE, VOLUME UP, VOLUME DOWN

[CONSUMER KEYS - mostly compatible, but some might not work]
POWER, SLEEP, BRIGHTNESS_UP, BRIGHTNESS_DOWN, SCREENSAVER (consumer key may not working depends on devices)

[MOUSE]
L CLICK, R CLICK, L DOUBLE_CLICK, R DOUBLE CLICK, MOVE RIGHT, MOVE UP, MOVE DOWN, SCROLL UP, SCROLL DOWN, MIDDLE CLICK, MIDDLE double CLICK, (Drag and drop available)

Links

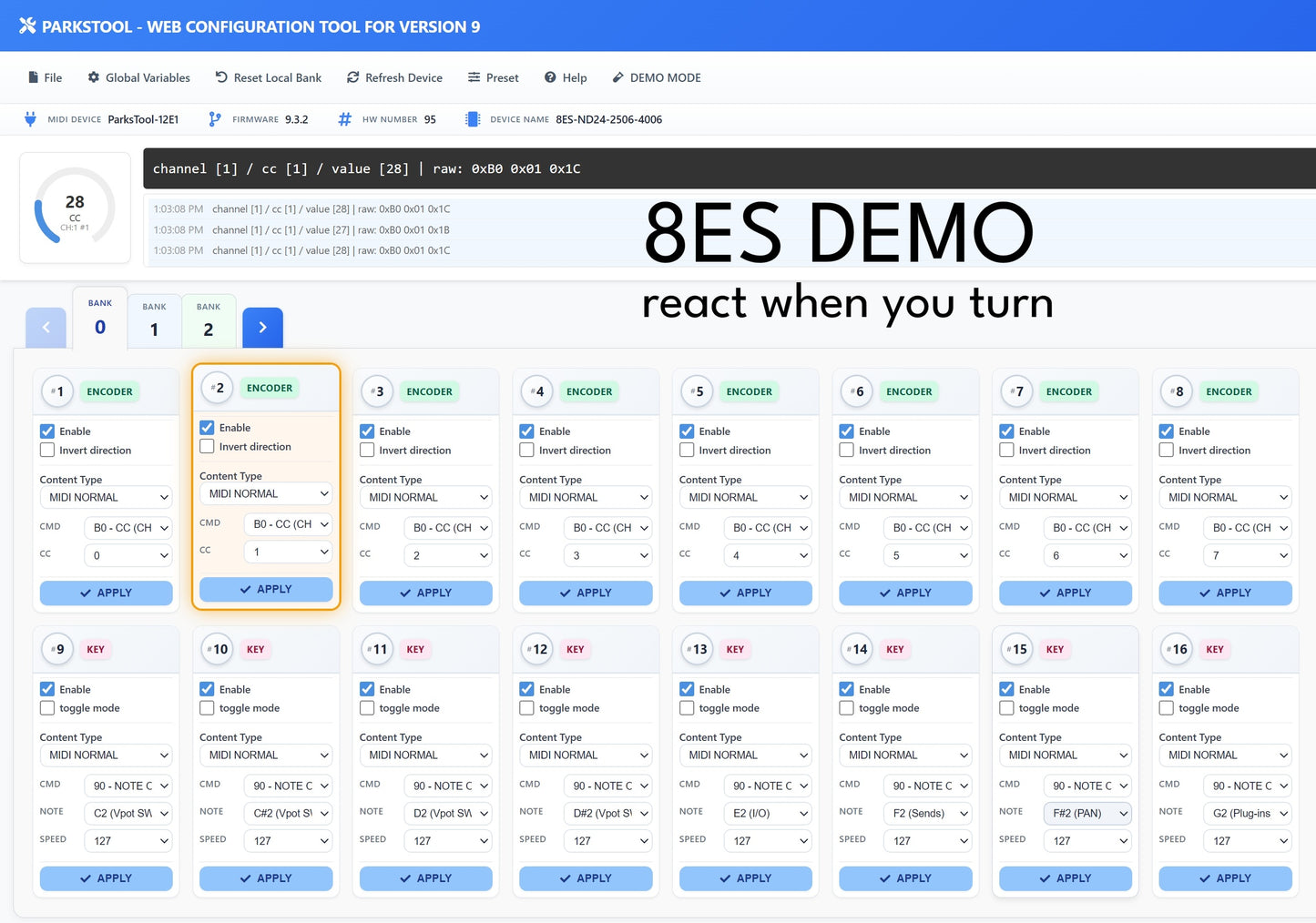

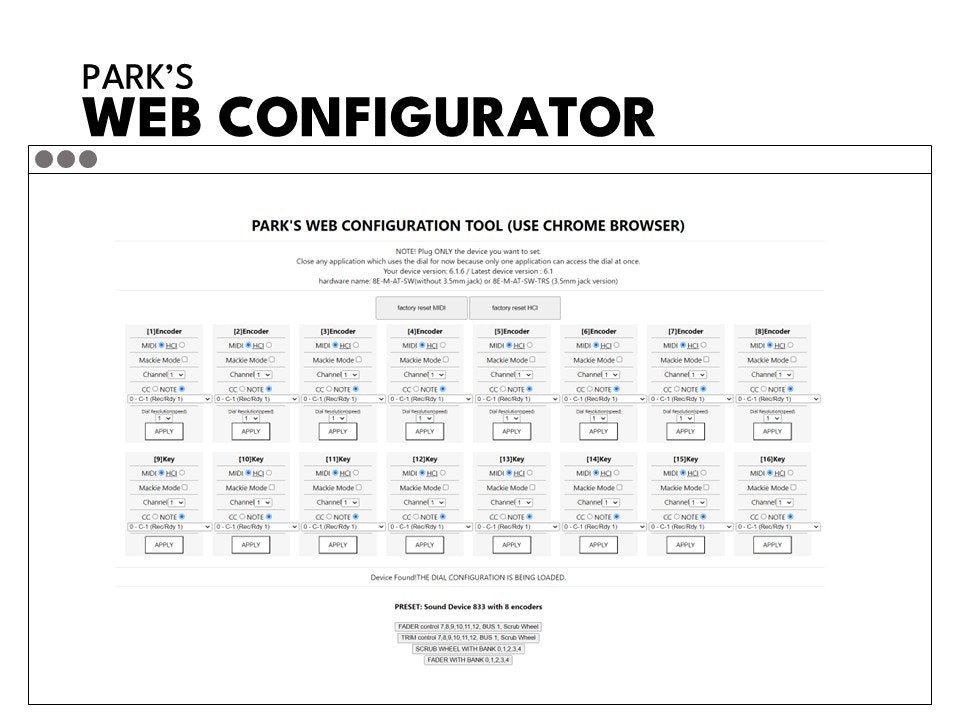

Web configuration tool - https://config.parkstool.com
Video Introduction: https://www.youtube.com/watch?v=_RLXLPmQXQA
Manual - https://wiki.parkstool.com/

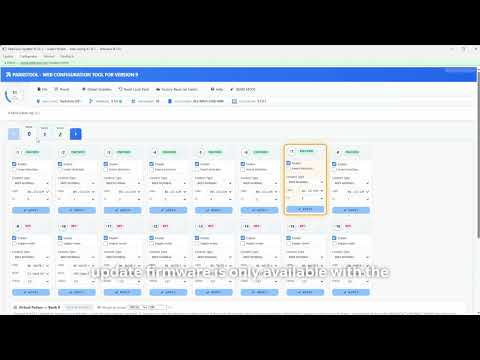

Firmware update instruction - https://www.parkstool.com/instruction/firmware-update
