ParksTool 9F18K1X (9 Faders + 18 Keys + 1 Expression pedal input) MIDI Controller
ParksTool 9F18K1X (9 Faders + 18 Keys + 1 Expression pedal input) MIDI Controller
Couldn't load pickup availability
TECHNICAL DETAILS
9 30mm faders + 18 Tactile keys + 1 expression pedal input
USB Type: USB type C (USB cable is not included)
3.5mm TRS MIDI OUT (Cable is not included) (TRS switcher integrated)
Function: Keyboard / Plug and play MIDI controller
working with Mac, Windows, Linux, Android, iOS (iPAD and iPhone)

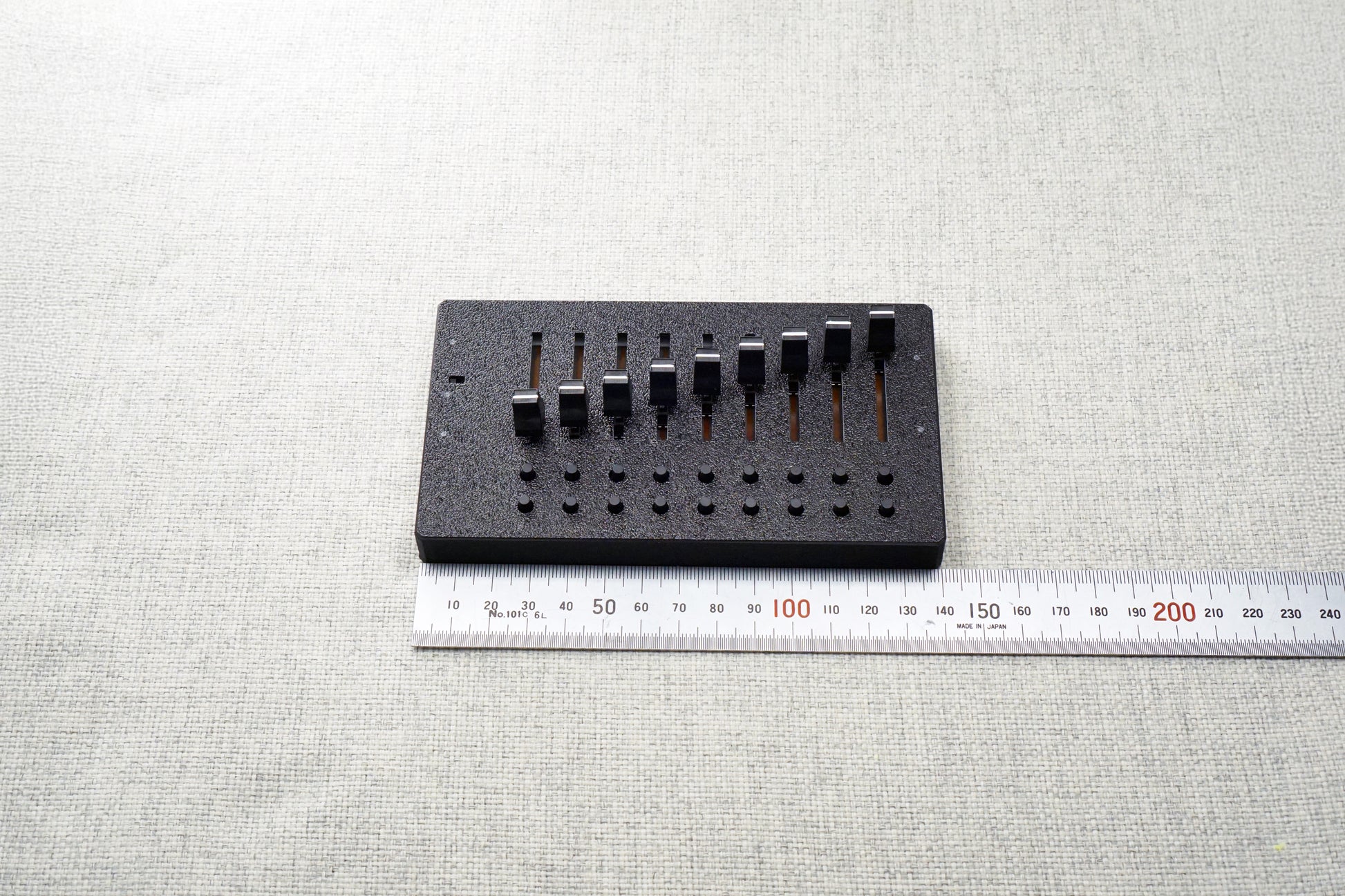

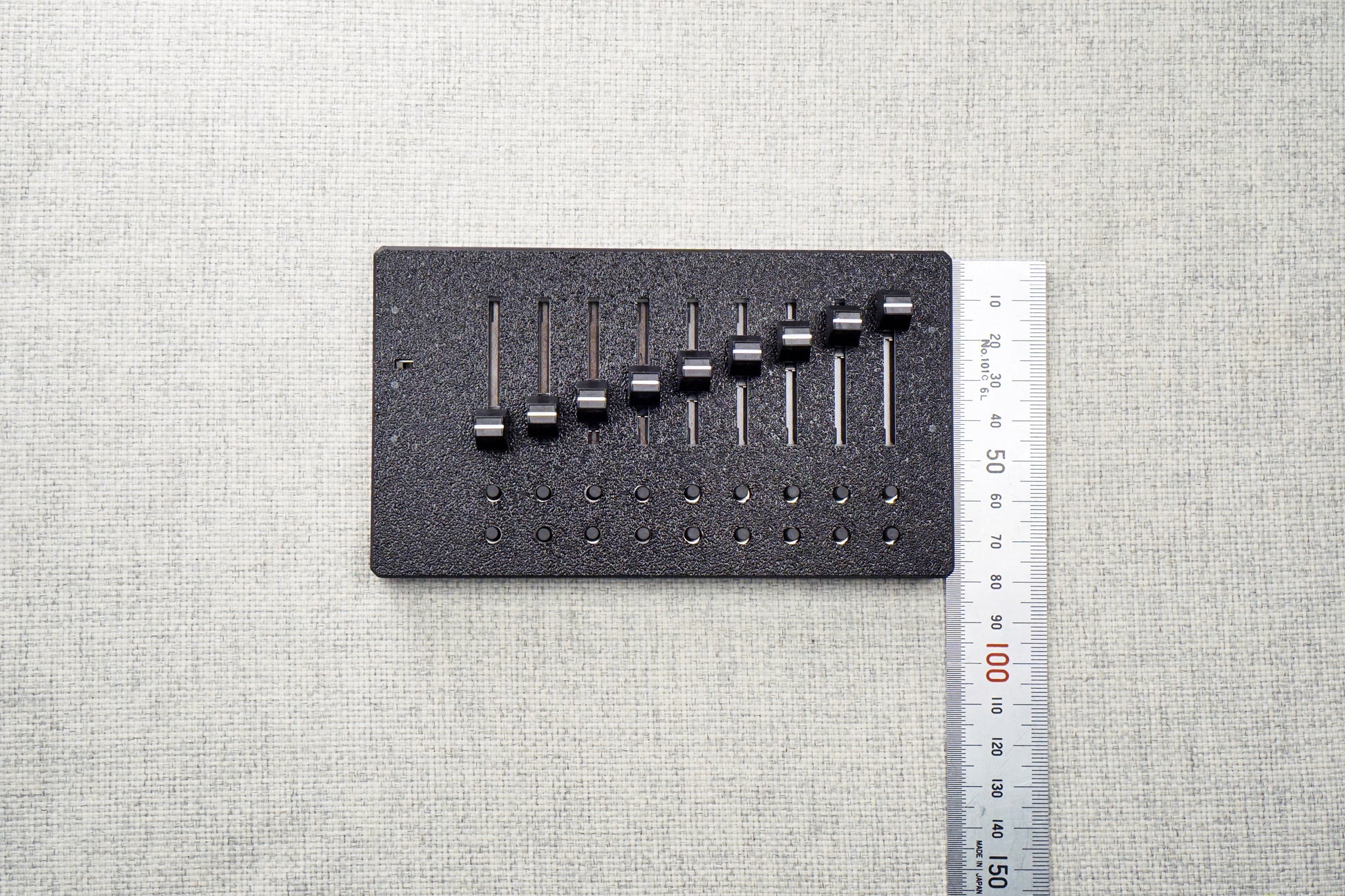

Dimensions: 141mm x 80mm x 32mm
Product Manual
https://manual.parkstool.com/en/products/9F18K1X.html

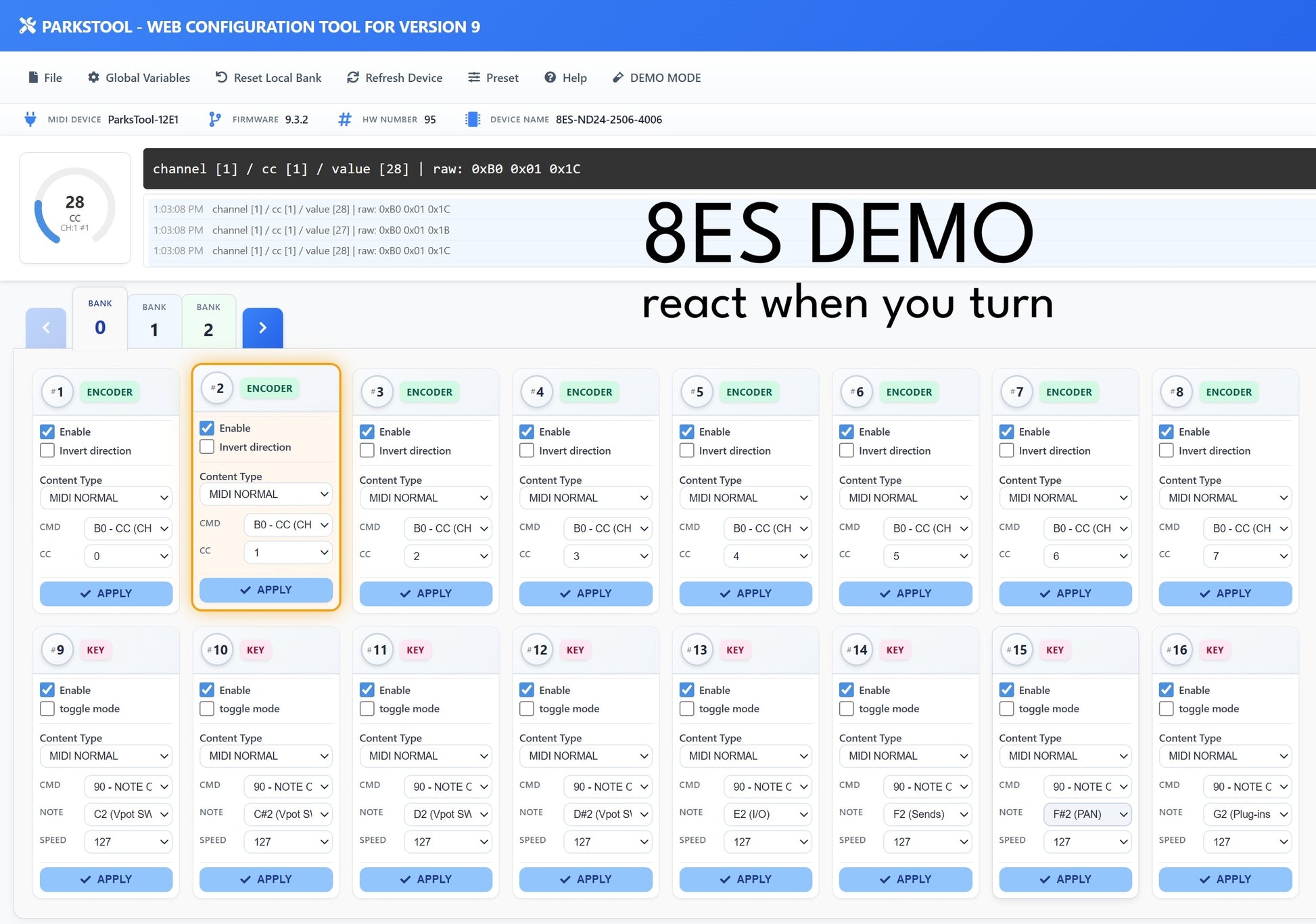

Configuration Page
⚠️ Web Configuration Tool requires a PC (Windows/Mac + Chrome or Edge).
MIDI controller functionality works on all platforms (Windows, Mac, Linux, Android, iOS).
iOS/iPadOS: Web Configuration Tool not available (WebKit limitation).

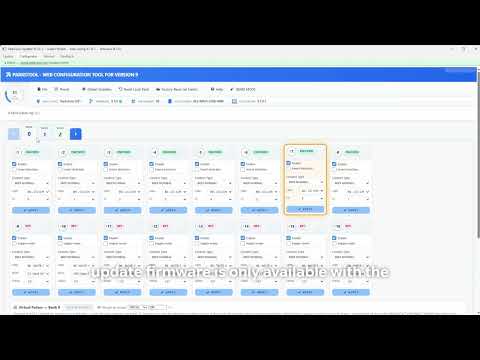

Latest Firmware Update
What is the ParksTool 9F18K1X?
The ParksTool 9F18K1X is a compact, USB-C bus-powered MIDI controller featuring 9 30mm linear faders + 18 tactile buttons + 3.5mm expression pedal input. Experience true plug-and-play functionality: plug it into any computer, tablet, or smartphone — no driver installation needed. Enjoy full configuration without any software installation using the free Web Configuration Tool directly from your browser.
Controls & Features
- 30mm Faders (9×) — Linear fader with 30mm travel for intuitive channel control. 10-bit resolution; ideal for mixing, channel volume, and Mackie Control Protocol (MCP) fader assignments.
- Tactile Keys (18×) — Tactile switch for satisfying actuation. Configurable via software as momentary (press/release) or toggle (on/off). Assign Bank Change, Note, CC, keyboard shortcuts, or media keys.
- Expression Pedal Input (1×) — 3.5mm TRS port for an external expression pedal. Control continuous parameters — volume swell, wah, modulation — hands-free.
- Bank System — Switch between multiple MIDI layouts (banks) on the fly, multiplying your controls without adding hardware.
- TRS MIDI Out (3.5mm) — Connect directly to hardware synths, drum machines, and audio recorders without a computer. Supports Type A and Type B (switchable).
- Web Configuration Tool — Remap every control to any MIDI mode: CC, Note, Pitch Bend, Program Change, 14-bit CC, NRPN, SysEx, keyboard shortcuts, or media keys.
Technical Specifications
| Faders | 9 × linear fader, 30mm stroke, 10-bit resolution (1024 steps) |
|---|---|
| Keys / Switches | 18 × tactile switch, software-supported momentary & toggle modes |
| Expression Pedal Input | 1 × 3.5mm TRS port for external expression pedal |
| Dimensions | 141mm x 80mm x 32mm |
| Weight | 101g |
| Material | PLA |

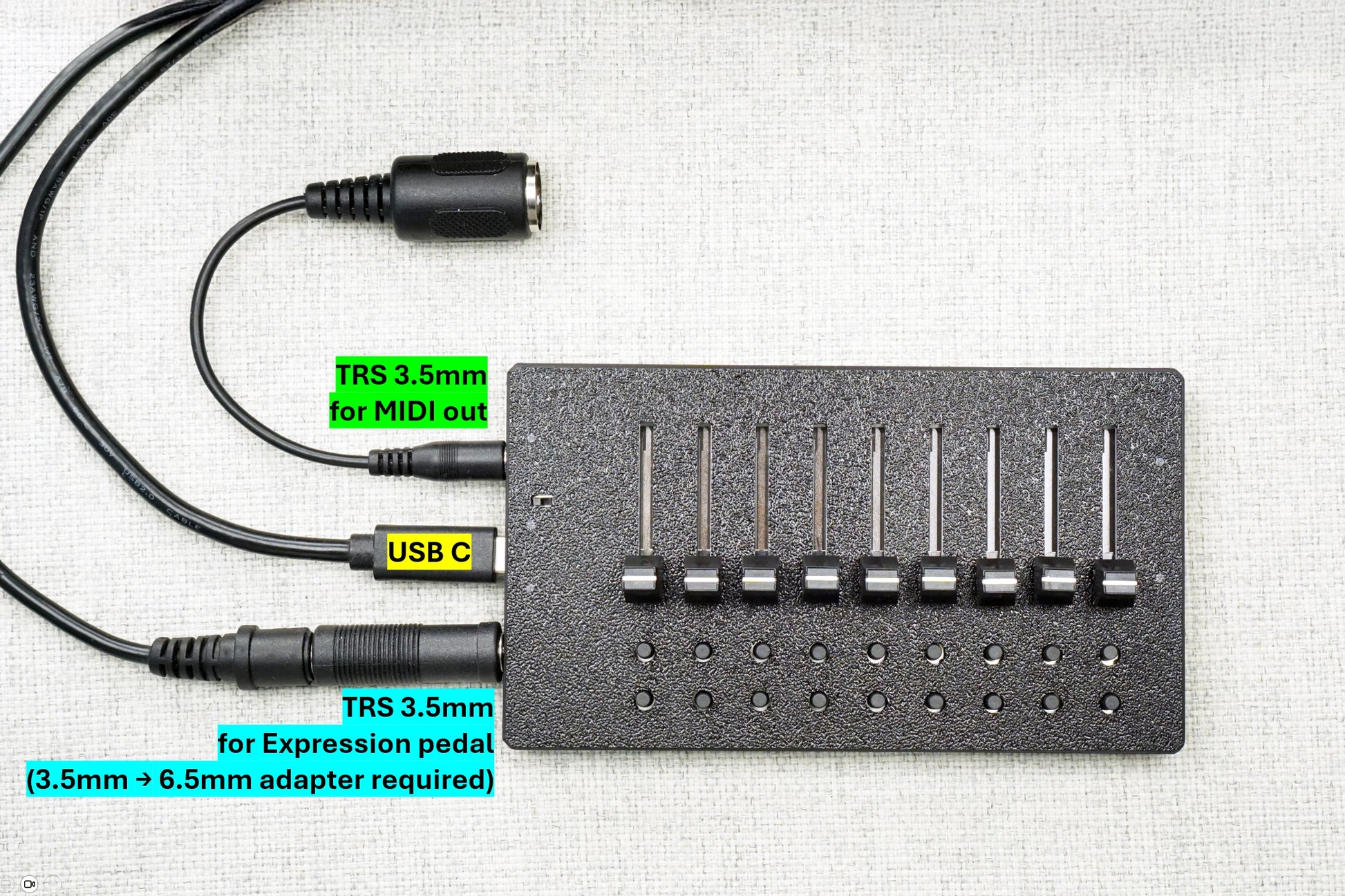

| Connectivity | USB Type-C (MIDI + power), 3.5mm TRS MIDI out |
| Power | USB bus-powered (5V, under 150 mA) |

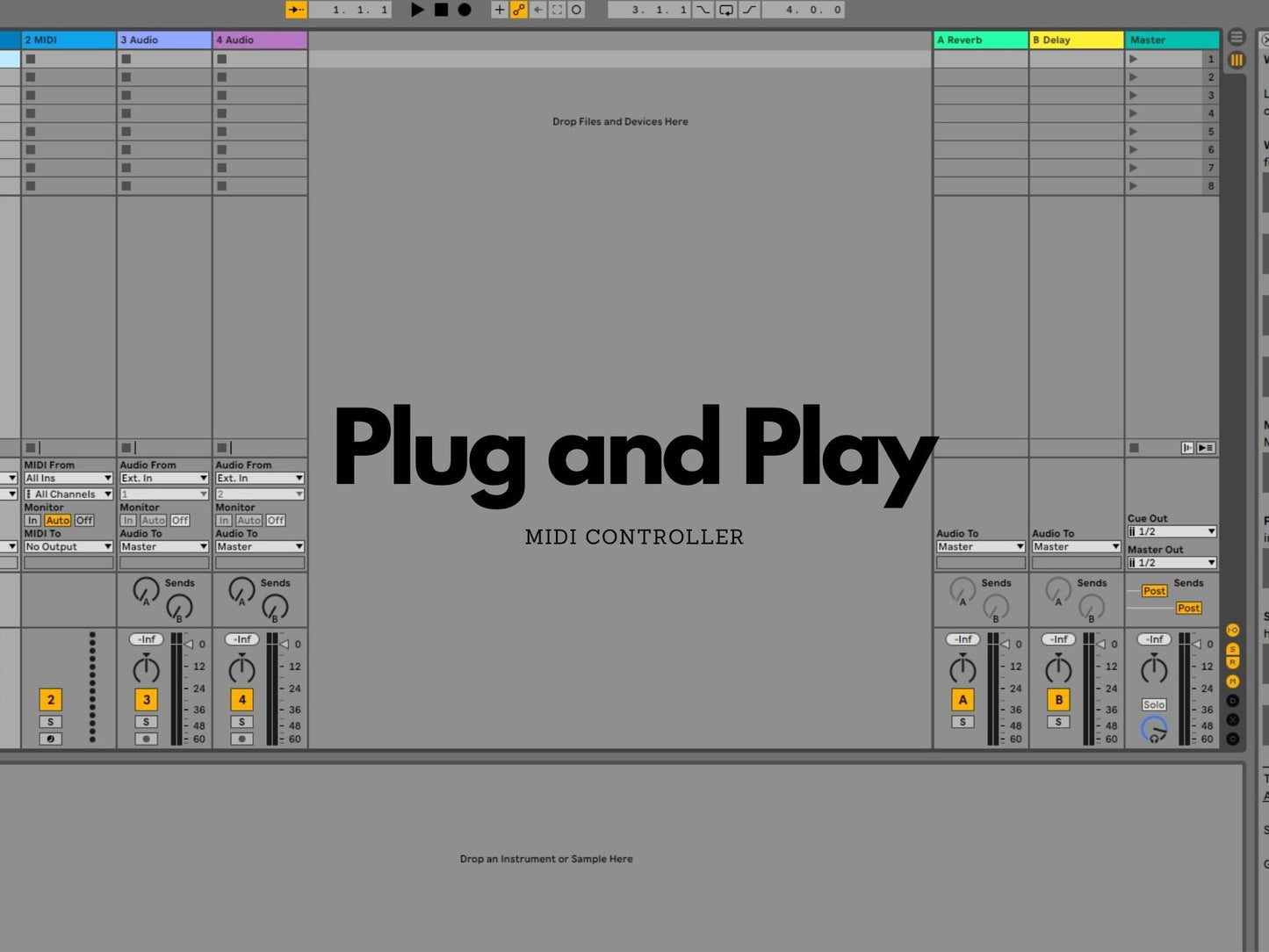

| Driver / Setup | True plug-and-play. No driver installation required — class-compliant USB MIDI |
| Compatibility | Windows 10+, macOS, Linux, Android, iOS |
| Configuration | Full configuration without any software installation via the Web Configuration Tool (config.parkstool.com) |
| Protocol Support | CC, Note, Pitch Bend, Program Change, 14-bit CC, NRPN, SysEx, MCP |
Perfect For
- DAW channel fader control (Ableton, Logic, Cubase, Pro Tools)
- Live sound mixing — multi-channel level adjustment
- Post-production film/game audio mixing
- Mackie Control Protocol (MCP) fader extension
- Keyboard shortcuts and media key assignments (volume, play/pause, etc.)
- Mackie Control Protocol (MCP) integration for DAW mixing surfaces
Frequently Asked Questions
What is the ParksTool 9F18K1X?
The ParksTool 9F18K1X is a compact USB-C MIDI controller featuring 9 30mm linear faders + 18 tactile buttons + 1 3.5mm expression pedal input. It requires no driver installation and works immediately when plugged into any computer, tablet, or smartphone. Just true plug-and-play functionality.
Which DAWs does the ParksTool controller work with?
It works natively with all major DAWs including Ableton Live, Logic Pro, Cubase, FL Studio, Reaper, Pro Tools, GarageBand, and more. No additional plugins or setup are required.
Does it support Mackie Control Protocol (MCP)?
Yes. The ParksTool controller fully supports Mackie Control Protocol (MCP). For example, faders can be assigned as Pitch Bend messages, and encoders as V-Pot (relative) to control DAW mixing surfaces. However, these are freely reassignable—you can map a fader as V-Pot or an encoder as Pitch Bend if you prefer. Bank change keys allow multi-channel control. Presets for MCP are available in the Web Configuration Tool.
How do I customize the MIDI mapping?
Configuration is completely browser-based with zero software installation required. Just use the free ParksTool Web Configuration Tool at config.parkstool.com (Chrome or Edge). Changes are saved directly to the device memory instantly.
Do I need to install a driver or any software?
Absolutely not. It is a class-compliant USB MIDI device, meaning no drivers are needed. Even the configuration is done through a web browser, ensuring your system stays clean without installing extra wrapper software or background services.
Compatibility
Works with Ableton Live, Logic Pro, Cubase, FL Studio, Reaper, Pro Tools, GarageBand, Studio One, Bitwig Studio, and any USB MIDI-compatible software. Operating systems: Windows 10+, macOS, Linux, Android, iOS.
